New Radial Arm Drill Press Machines

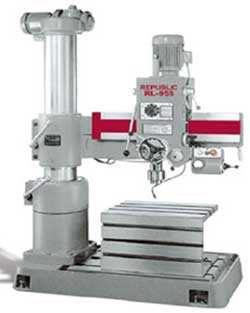

Need a huge drilling machine to put holes in large parts or hard to reach places? Then a Radial Arm Drill Press is the machine for you. We have models large enough to reach 62 inches (1580mm) and drill a 2 1/2 inch (63mm hole). Scroll down to see many different sizes from two different manufacturers. Most ACRA and JET models are in stock. The ACRA radial arm machines are less expensive. Both are manufactured in Taiwan.

New to drill presses? A drill press is used to cut round holes into or through metal, wood, or other materials. Radial Arm models are for large capacity work. Drilling machines use a twist drill tool that has cutting edges at its point. This cutting tool is held in the drill press by a chuck or Morse taper and is rotated and fed into the workpiece. Drilling machines may be used to perform other operations such as countersinking, boring, counterboring, spot facing, reaming, and tapping (threading). Drill press operators must know how to set up the work, set speed and feed, and provide coolant/lubricant. Want to learn more about drilling techniques? Click to read our huge How To Use a Drill Press webpage.

ACRA Radial Arm Drill Presses:

These machines are designed for drilling, tapping and reaming large size parts. The clamping table is very useful for clamping parts in position or for mounting fixtures and jigs to locate your parts. Heavy duty frame eliminates vibration. The headstock gears are made of hardened and ground alloy steel. The spindle is hardened and precision ground to be perfectly balanced and rigidly mounted on three precision radial antifriction bearings, with two axial bearings for thrust loads. The drilling spindle position is adjustable on a scale using a dial with a positive stop. The traversing head moves on the finely ground guide-ways. Upper guide-way is flat and lower guide way is dovetail type. The cooland system tank is inside the base of the machine with used coolant directed back into the tank. Quality manufactured in Taiwan.

High quality ACRA brand Radial Arm Drill Press machines have fantastic prices and are normally in stock and ready to ship from our warehouse. So click to request a quote below. Filling out the request form will take just a minute.

Radial Arm Drill Press photo of ACRA FRD-1300H
ACRA Radial Drill Specs
FRD-900S
Normally in stock
Click to
Request this Quote
FRD-1100S
Normally in stock
Click to
Request this Quote
FRD-1300H
Normally in stock
Click to
Request this Quote
FRD-1700H
Normally in stock
Click to
Request this Quote
Drilling Capacity in Steel
38mm[1.50"]
50mm[2"]
55mm[2.125"]
55mm[2.125"]
Drilling Capacity
in Cast Iron
50mm[2"]
60mm[2.375"]
66mm[2.50"]
66mm[2.50"]
Tapping Capacity
in Steel
19mm[3/4"]
25mm[1"]
30mm[1.18"]
50mm[2"]
Tapping Capacity
in Cast Iron
30mm[1.18"]
36mm[1.42"]
60mm[2.375"]
60mm[2.375"]
Boring Capacity in Steel
75mm[3"]
85mm[3.35"]
100mm[4"]
126mm[5"]
Spindle Stroke
200mm[7.875"]
250mm[9.875"]
250mm[9.875"]
250mm[9.875"]
Size of Morse Taper
MT#4
MT#4
MT#5
MT#5
Spindle Speed (RPM)
88-1500 (6)
44-1500 (12)
44-1500 (12)
30-1500 (12)
Spindle Feeds
0.05/0.09/0.15
0.05/0.09/0.15
0.05-0.306 (6)
0.05-0.306 (6)
Column Diameter
210mm[8.25"]
300mm[11.875"]
300mm[11.875"]
336mm[13.25"]
Min Distance, column surface to spindle center
290mm[11.875"]
330mm[13"]
550mm[21.75"]
400mm[15.75"]
Max Distance, column surface to spindle center
920mm[36.22"]
1145mm[45"]
1240mm[48.82"]
1700mm[66.93"]
Horizontal travel of drilling head
650mm
810mm
920mm
1310mm
Max Distance, base to spindle
1110mm
1230mm
1230mm
1420mm
Min Distance, base to spindle
282mm
540mm
540mm
260mm
Size of Table
(length x width x height)
550 x 405 x 315mm
650 x 500 x 410mm
650 x 500 x 410mm
800 x 540 x 400mm
Spindle Drive Motor
2 HP
3 HP
5 HP
7.5 HP
Arm Elevation Motor
1 HP
2 HP
2 HP
2 HP
Coolant Pump Motor
1/8 HP
1/8 HP
1/8 HP
1/8 HP
Oil Pump Motor
-
-
1 HP
1 HP
Shpping Weight of Machine
1270 kg
2100 kg
2250 kg
3250 kg
Shipping Size of Machine
(L x W x H)
1580x820x2060mm
2010x1030x2230mm
2290x1100x2230mm
2850x1210x2540mm

JET Radial Arm Drill Press Features:
The power train gears and spline shaft are made of the finest quality, heat treated and ground nickel-chrome steel, giving extra strength and smoothness to high torque loads The spindle is made of the finest case hardened steel for extra strength and wear The spindle is supported by double row taper roller and thrust ball bearings at the nose, with thrust and radial axis bearings at the top. The spindle is built to withstand exceptionally heavy drilling and boring loads and to insure maximum accuracy. Push button controls are all reduced to 110 Volts. Electrical circuits are located in the built-in control box at the rear of the arm. This keeps the contols dust and humidity free while making them easily accessible for maintenance. Entire frame is made of Meehanite and high tensile strength cast iron to handle the heaviest of jobs. Built in work light. Coolant pump. Tool kit. Box table.

Extra features included for models J-1100R, J-1230R and J-1600R:
Arm raising safety device prevents arm from dropping.
Counter balanced mechanism for spindle return.
12 speeds/3 feed rates make exotic materials easier to drill, bore and tap.
Centralized control center.
Automatic tool ejector.
Hydraulic head and column clamping.

Photo of Jet J-720R Radial Drill Press
Photo of J720R Radial Drill Press
Picture of Jet J-1230R Radial Arm Drill Press
Photo of J-1230R
Image of Jet J-1600R Radial Drill Press
Photo of J-1600R Radial Drill Press

JET Radial Drill Specs

J-720R
Normally in stock
Click to
Request this Quote
J-1230R
Normally in stock
Click to
R equest this Quote
J-1600R
Normally in stock
Click to
Request this Quote
Number of speeds & range
6 (88 - 1500)
12
12
Number of feed rates
3
3
3
Motor 220Volts or 440V,3phase
3 HP
2.5 to 5 HP
7.5 HP
Spindle Taper
MT-4
MT-4
MT-5
Max Distance Spindle to Table
26-3/4"
37-1/2
47-3/8
T-Slots
3 @ 3/4"
3 @ 3/4"
3 @ 7/8
Column Diameter
8-1/4"
11-13/16"
17
Drilling Capacity in Cast Iron
2"
2-5/16
2-5/16
Drilling Capacity in Mild Steel
1-1/2"
1-7/8
2-1/2
Tapping Capacity in Cast Iron
1"
1-1/2
2-3/8
Tapping Capacity in Mild Steel
3/4"
1
2
Boring Capacity in Cast Iron
4"
4-3/4
7-3/8
Boring Capacity in Mild Steel
2-3/8"
3-3/8
5
Distance Column to Spindle-Max
29-1/2"
46
62-1/4
Distance Column to Spindle-Min
8-5/8"
13-3/4
13-3/8
Distance Base to Spindle -Max
41-3/4"
54
63
Distance Base to Spindle - Min
9-5/8"
19-3/8
15
Travel of Head Horizontal
-
35

Arm Travel Vertical
23-13/16"
35
33-15/32
Quill Travel
8-21/32"
9-7/8
14-9/16
Quill Travel using Powerfeed
8-1/4"
9-7/16
13
Quill Down feed Rates (I.P.R.)
3 (.002, .004, .006")
3 (.002, .004, .006)
6 (.003 - .038 IPR)
Elevating Motor
1 HP
1 HP
2 HP
Coolant Pump Motor
1/8 HP
1/8 HP
1/8 HP
Table Size
23.62 X 17.5 X 15
25 x 20.5 x 16.3
27.9 X 19.6 X 15.75
Overall Dimensions L x W x H
64Long x 32wide x 85high
68 x 28 x 110
98 x 41 x 125
Gross Weight
2970 pounds
4620 pounds
11240 pounds

BIRMINGHAM Radial Arm Drill Press

TPR-720
Click to
Request
a Quote
TPR-820
Click to
Request
a Quote
TPR-920
Click to
Request
a Quote
TPR-1100
Click to
Request
a Quote
TPR-1230
Click to
Request
a Quote
Column Diameter
8.25"
[210mm]
8.25"
[210mm]
8.25"
[210mm]
10.25"
[260mm]
11.81"
[300mm]
Column to spindle-max
29.5"
[750mm]
33.5"
[850mm]
37.37"
[950mm]
43.31"
[1100mm]
48.44"
[1230mm]
Column to spindle-min
8.62"
[220mm]
8.62"
[220mm]
8.62"
[220mm]
19.62"
[245mm]
13.38"
[340mm]
Spindle head travel
20.87"
[530mm]
24.87"
[630mm]
28.75"
[730mm]
33.62"
[855mm]
35"
[890mm]
Arm elevating height
23.81"
[605mm]
25.56"
[650mm]
25.56"
[650mm]
24"
[600mm]
34.62"
[880mm]
Box Table area
23.5x17.5x15"
[600x445x380mm]
25x20.5x15"
[635x520x415mm]
Base Dimensions
49.5x25.2x6.3"
[600x445x380]
68 x 28 x 6.5"
Spindle Taper
MT4
MT4
MT4
MT4
MT4
Spindle Stroke
8.25"
8.25"
8.25"
9"
9.87"
Spindle RPM
(6) 88,154,282,455,796,1500
(12) 44 to 1500
Main Motor
2 HP
2 HP
2 HP
3 HP
3 HP
Elevating Motor
1 HP
1 HP
1 HP
1 HP
1 HP
Hole Capacity
Drilling Steel
1.5"
1.5"
1.5"
1.62"
1.62"
Drilling Cast Iron
2"
2"
2"
2.18"
2.18"
Tapping Steel
1"
1"
1"
1"
1"
Tapping Cast Iron
1.25"
1.25"
1.25"
1.5"
1.5"
Boring Steel
2.75"
2.75"
2.75"
3.38"
3.38"
Boring Cast Iron
4"
4"
4"
4.75"
4.75"

Extra Auxiliary Dial for Spindle Feed Depth
Arm Raising and Limit Safety Devices
Spindle Balance Mechanism
Coolant Pump
Work Light
Box Table
Tool Set
12 week lead time

Birmingham Radial Drill Press available in 5 models

Model TPR-1230 comes with Electric Head Clamping or optional Hydraulic Clamping
