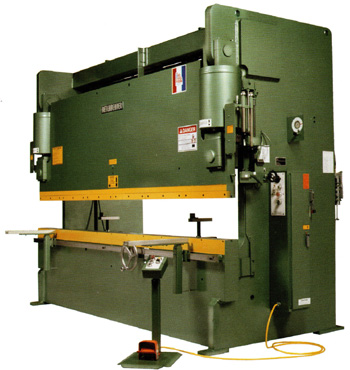

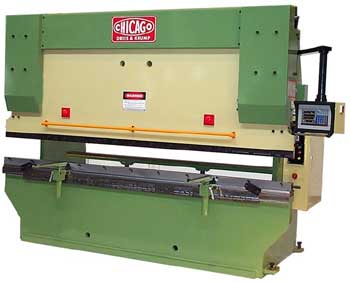

Chicago Dreis & Krump Hydraulic Press Brake and Powered Leaf Brake hydraulic metal bending machines with push button controls to bend metal into many shapes including boxes and pan shapes.

To bend metal, Press Brake machines normally use a wedge shaped upper die that force the metal down into the V shaped lower die to bend metal to conform with the tooling.
Click for 4 pages of standard Press Brake Dies. A Back Gauge can position the metal exactly where you want it, and the Ram Depth Control is used to stop the upper die at the correct depth to form the angle desired. Sophisticated tooling can be used to form several bends simultaneously. The size of machine required is usually determined by the thickness of the metal and width of the bottom V-die used. Click for our Press Brake Tonnage Chart to calculate the size machine you need. Chicago Dries & Krump brake presses use American style tooling and come with a simple 2-Axis CNC controlled back gage and ram die depth control with a 16 bend memory to easily form your simple or complex parts jobs again and again. 99 jobs can be saved in memory. To program the memory you simply make your first part manually and save the ram depth and back gauge positions in the CNC memory. Whenever you make the same part again the machine knows what to do. You just have to position the metal against the back gauge. Metal forming can also be done in a manual mode for single parts.

NOTE: Safety devices such as Light Curtains are strongly recommended to prevent fingers and hands from getting crushed especially for predictable repeat uses. Safety compliance is the users responsibility. Please take it seriously. *** Click for our Machinery Safety webpage ***.

Scroll further down to see hydraulic and mechanical power leaf brakes up to 3/4" capacity. These machines clamp the metal in place and use a hinged apron to fold the metal until the desired angle is reached. They are easier to operate than press brakes and thought to be safer. The forming principle is similar to a Hand Brake. A box and pan capable version is available to avoid having the metal hit against the clamping bar when the 3rd and 4th sides are being bent. This is done by removing a clamping bar "finger" at each end of the box since the clamping bar is divided up into many assemblies called "fingers". An insert bar is used to form close offset ("zig-zag") bends.Click for chart of tensile strengths for aluminum and stainless steel to compare with mild steel Click for a Bend Radius Chart for aluminum and stainless steel

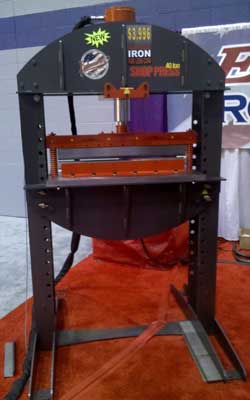

EDWARDS HYDRAULIC PRESS BRAKE • 40 Tons • Press Brake Tooling is 32 inches long, as seen in photo can bend 3/16 x 32", 1/4 x 24", 3/8 x 6" mild steel. • Made in USA • Heavy duty all steel construction • Rolling cylinder for maximum versatility. • Easy to use hand controls • Quick disconnect hoses • Cylinder with 6 inch Bore, 4 inch Ram • Stroke: 12 1/4" • Press Brake tooling can be unbolted and then the machine becomes a 40 ton hydraulic shop press. Only $8590. includes 220 Volts 3 phase Hydraulic Power Unit 440 Volts 3 phase Hydraulic Power Unit costs $95. extra 220 Volts 1 phase Hydraulic Power Unit costs $195. extra Click to Request a formal Quote for this

---

HYDRAULIC METAL BENDING BRAKE MACHINE

Chicago Dreis & Krump brings hydraulic power and push button convenience to its legendary sheet metal hand brake machine family because you can save time and money with the extra muscle. Two man jobs become one man jobs. They are so easy to operate. A simple bend angle control adjustment dial completely eliminates the need for tooling and related time consuming setups. This machine can also form your coated or polished metal without a scratch. These durable, labor saving, high performance work horses are totally self contained. They will accurately bend standard or special design forms and can even make 1/4" reverse bends on light gauge steel with the optional 1/4" insert bar. Click to see video of the machine

STANDARD HYDRAULIC POWERED BENDING BRAKE SIZES

Model Number	Bend Length	Capacity		Motor HP	Shipping Weight Lbs.	Dimensions
		Mild Steel	Stainless			Length	Width	Height
HSB-812 Request a Quote	97"	12 gauge (.105")	16 gauge (.06")	3	4,000	125"	48"	57"
HSB-810 Request a Quote	97"	10 gauge (.135")	14 gauge (.075")	5	6,300	126"	49"	57"
HSB-1014 Request a Quote	121"	14 gauge (.075")	18 gauge (.048")	3	4,500	150"	48"	57"
HSB-1012 Request a Quote	121"	12 gauge (.105")	16 gauge (.06")	5	6,525	150"	48"	57"
HSB-1010 Request a Quote	121"	10 gauge (.135")	14 gauge (.075")	5	7,500	150"	48"	57"
HSB-1218 Request a Quote	145"	18 gauge (.048")	22 gauge (.030")	3	4,900	174"	48"	57"
HSB-1422 Request a Quote	169"	22 gauge (.030")	26 gauge (.018")	3	5,500	200"	48"	57"

Click for our Sheet Metal Hand Brake machines page

---

HYDRAULIC METAL BENDING BOX & PAN BRAKE MACHINE

With fingers for box and pan type forming to depth of 6"
Click to see video of this hydraulic metal bending machine

Model Number	Bending Length	CAPACITY		Motor HP	Shipping Weight Lbs.
		Mild Steel	Stainless Steel
HBPU-412-6 Request a Quote	48"	12 gauge (.105")	16 gauge (.06")	2	2800
HBPU-612-6 Request a Quote	72"	12 gauge (.105")	16 gauge (.06")	2	3300
HBPU-812-6 Request a Quote	96"	12 gauge (.105")	16 gauge (.06")	3	4700
HBPU-810-6 Request a Quote	96"	10 gauge (.135")	14 gauge (.075")	5	6400
HBPU-1014-6 Request a Quote	120"	14 gauge (.075")	18 gauge (.048")	3	5500

MODEL	Width and number of 6 inch long Fingers
	3"	4"	5"	6"	Total
HBPU 412-6	5	2	5	0	12
HBPU 612-6	5	4	7	1	17
HBPU 810-6	5	6	9	2	22
HBPU 812-6	5	6	9	2	22
HBPU 1014-6	6	10	10	2	28

STANDARD EQUIPMENT on each hydraulic powered metal bending brake machine:

Removable Nose Bar Bolted Bottom Bar Compact Hydraulic Power Unit

Angle Bar Insert Bar Oil Level Sight Gauge

Electric Foot Switch - Clamps and unclamps Top Leaf. Allows operator mobility when loading and unloading material.
Bend Angle Dial Adjustment - Adjustable cam and scale that read in degrees, actuates an electric limit switch for bend angle control and repeatability of bends.
Material Thickness Dial Adjustment - Reference scale for speedier set up when adjusting clamping pressure.
Back Gauge - 25 1/2" travel, rack and pinion type with hand wheel adjustment on right side of machine. Inch/Cm scales.
Inch Control - Bending leaf up/down pushbuttons allow complete operator control of the bending leaf motion.
Automatic Cycle - Actuating the "Automatic Pushbutton" clamps the top leaf, raises the bending leaf to the preset bend angle dial adjustment setting, lowers the bending leaf, unclamps the top leaf.
OPTIONAL:
• Extension Fingers (to form rigid inside corners with a return flange across the top)
• Open End Fingers (to form tubes of triangular, square, rectangular, or tapered shape)
• Radius Nose Bars up to 1.5" radius (great for aluminum aircraft work)
• Insert Bar - 1/4 inch (for closer offset bends)
• Radius Formers - for forming gutters, mouldings, and prototypes from thin sheet metal.

---

POWER LEAF BRAKES: bend up to 3/4 thick steel plate!
Standard, or Box & Pan, in regular, medium and heavy duty capacities. Expensive, but every model we sell includes power clamping and motorized top leafs for maximum productivity. Everything is solidly built to last for many many years, from the welded steel plate frames with box type support to the powerful gear head motors with built-in magnetic brakes. These machines offer the kind of staying power and efficiency that includes radius bending abilities usually associated with roll forming equipment or stamping presses. Our Box and Pan versions are just as rugged and stable as our standard models. The sectional, adjustable, finger assemblies even let you easily bend five sided boxes up to 8" deep, and shapes such as tubes. Totally Made in USA. Priced from $100,000.

POWERFUL FEATURES: Power Unit - Powerful, cool running direct drive gear head motor is equipped with built in magnetic brake. Drive System - Self aligning main shaft bearings assure smooth power transmission. Rack and pinion gear transfer power to bending leaf. Power Clamping - Dual air cylinders actuate eccentric clamping links to secure piece part for accurate bending. Power Top Adjustments - Motor adjusts top leaf accurately to thickness of work piece for correct bending radius. Bend Stops - Micro limit switch controls bending leaf travel for repeatable angle bends on the finished work. Operator Controls - Dual operator stations placed at sides of unit for clear view of the qwork area.

STRAIGHT PLATE BENDING MACHINES

Click MODEL NUMBER to Request a Quote	Bending Length	Capacity	Min flange on capacity material	Motor HP	Ship weight LBS	Dimensions
						Length	Max Width	Max Height	Base Length	Table Height	Base Width
REGULAR DUTY
PB-8187	96"	3/16	1 1/2"	5	6550	9'8"	8'	6'1"	9'	3'11"	3'7"
PB-8250	96"	1/4"	2"	7 1/2"	9625	10'	8'6"	6'4"	9'3"	3'10"	4'1"
MEDIUM DUTY
PB-10135	120"	10 gauge	1"	5	8140	11'8"	8'	6'1"	11'	3'11"	3'7"
PB-10187	120"	3/16	1 1/2"	6 1/4	11135	12'	8'6"	6'4"	11'3"	3'10"	4'1"
HEAVY DUTY
PB-8375	96"	3/8"	2 1/2"	7 1/2	17000	11'8"	10'	7'5"	9'4"	4'2"	4'8"
PB-8500	96"	1/2"	4"	10	22000	11'8"	10'10"	7'10"	9'5"	4'3"	5'7"
PB-8750	96"	3/4"	6"	20	25000	12"	11'	7'11"	11'2"	4'2"	5'7"
PB-10250	120"	1/4"	2"	7 1/2	18700	13'8"	10'6"	7'5"	11'4"	4'2"	4'8"
PB-10375	120"	3/8"	2 1/2"	10	22800	13'10"	10'6"	7'6"	11'5"	4'3"	5'7"
PB-10500	120"	1/2"	4"	15	24000	13'10"	10'6"	7'6"	11'5"	4'3"	5'7"

BOX & PAN BENDING MACHINES with 8" Finger Extensions

Click MODEL NUMBER to Request a Quote	Bending Length	Capacity	Min flange on capacity material	Motor HP	Ship weight LBS	Dimensions
						Length	Max Width	Max Height	Base Length	Table Height	Base Width
MEDIUM DUTY
PBP-8135-8	96"	10 Ga	1"	3	7000	9'8"	8'	6'4"	9'	3'11"	3'7"
PBP-8187-8	96"	3/16	1 1/2"	5	7600	9'8"	8'	6'4"	9'	3'11"	3'7"
PBP-8250-8	96"	1/4"	2"	7 1/2"	10750	10'	8'6"	6'8"	9'3"	3'10"	4'1"
PBP-10135-8	121"	10 Ga	1"	5	9400	11'8"	8'	6'4"	11'	3'11"	3'7"
PBP-10187-8	121"	3/16	1 1/2"	5	12500	12'	8'6"	6'8"	11'	3'11"	3'7"
HEAVY DUTY
PBP-10250-8	121"	1/4"	2"	7 1/2	19000	13'8"	10'	7'9"	11'4"	4'2"	4'8"

FINGER ASSORTMENTS

Model	Width and Number of 8" long Fingers
	3"	4"	5"	Total
PBP-8135-8	8	8	8	24
PBP-8187-8	8	8	8	24
PBP-8250-8	8	8	8	24
PBP-10135-8	10	10	10	30
PBP-10181-8	10	10	10	30
PBP-10250-8	10	10	10	30

---
