Cold Saws
Horizontal bandsaws, vertical band saws, and cold saw machines.  CLICK FOR HOMEPAGE.

Metal cutting circular Cold Saw Machines

Dont let the pictures fool you. These miter saws are to cut metal, not wood. Our metal cutting powered circular coldsaws use a rotating circular blade instead of a band type blade and give a cleaner, straighter, more accurate cut than a bandsaw, but the vises fit only small parts. We also have Dake automatic self feeding saws for accurate repeat cutting.

Click to read how to use an industrial saw machine (warning: huge webpage to download)

American Machine Tools Company is accedited by the Better Business Bureau! Click to verify. We accept Visa credit cards for up to $25,000.We accept Mastercard for up to $25,000.American Express accepted here

Jet model JF225 Portable metal cutting Cold Saw
Click to Request this Quote and info

Cutting Capacity:
Round at 90: 2-1/2", Round at 45: 2"
Rectangle at 90: 2-1/2 x 2-15/16"
Square at 90: 2-1/4 x 2-1/4"
Blade Size: 225mm x 32mm x 2mm
Blade Speed: 52 RPM
Maximum Vise Opening: 2-3/4"
Motor: 1 HP, 115 Volts, 1 phase
Weight: 84 Lbs. / 145 Lbs for shipping
Manually cuts from 0 to 45 degrees left. Bronze worm gear and hardened ground worm screw gear box in an oil bath. Control handle with a safety spring loaded trigger switch to start or stop the machine. Coolant system. Manual vise. Adjustable depth stop.

Jet J-F225 portable metal cutting Cold Saw

Jet CS-275 metal cutting Cold Saw
Click to Request this Quote and info
Cutting Capacity:
Round at 90: 3.3" (tube), 1.5" (solid)
Round at 45: 3.3" (tube), 2.5" (solid)
Rectangle at 90: 3.1 x 2.0 (tube), 3.1 x 2.0 (solid)
Rectangle at 45: 2.2 x 2.0 (tube), 2.2 x 2.0 (solid)
Square at 90: 2.5 x 2.5 (tube), 2.5 x 2.5 (solid)
Square at 45: 2.2 x 2.2 (tube), 2.2 x 2.2 (solid)
Blade Size: 275mm x 32mm x 2mm
Blade Speeds: 54 , 108 RPM (ferrous cutting)
Maximum Vise Opening: 4"
Motor: 1.5 HP, 220 Volts, 3 phase
Weight: 400 Lbs.

Heavy duty cast iron frame and base standard. Cast dual pivot saw head. Two cutting speeds. Hardened and ground worm and wheel gear box. 1.5 gallon coolant tank capacity. Integral flood-style coolant system. 30 inch material length stop. Safety guards. Capable of slotting.

Jet CS-275 metal cutting circular cold_saw machine
Jet CS-315 metal cutting Cold Saw
Click to Request this Quote and info
Cutting Capacity:
Round at 90: 3.5" (tube), 2" (solid)
Round at 45: 3.5" (tube), 2" (solid)
Rectangle at 90: 3.2 x 3.2 (tube), 4 x 3.2 (solid)
Rectangle at 45: 2.6 x 2.6 (tube), 3.2 x 2.6 (solid)
Square at 90: 3.25 x 3.25 (tube), 3.2 x 3.2 (solid)
Square at 45: 3.125 x 3.125 (tube), 2.6 x 2.6 (solid)
Blade Size: 315mm x 32mm x 2mm
Blade Speeds: 52 , 104 RPM (ferrous cutting)
Maximum Vise Opening: 4.7"
Motor: 2 HP, 220 Volts, 3 phase
Weight: 450 Lbs.

Miter up to 135 degrees. Heavy duty cast iron frame base with a cast saw head. Long actuating handle giving the operator a lot of leverage. Clamping system operation is conducted with an cam-handle for quick release. Integral coolant system.

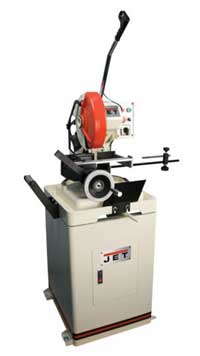

Jet CS-315 metal cutting coldsaw machine

Jet JFK350-2K ferrous cutting Cold Saw
Jet JCK350-2K non-ferrous Cold Saw

Click to Request this Quote and info
Cutting Capacity:
Round at 90: 4-1/2. Round at 45: 3-1/2"
Rectangle at 90: 5-1/2 x 3-3/4".
Rectangle at 45: 3-1/2 x 3-1/2"
Square at 90: 4-1/4 x 4-1/4".
Square at 45: 3-1/2 x 3-1/2"
Blade Size: 350mm x 32 x 2.5
Blade Speeds (ferrous): 44, 88 RPM
Blade Speeds (non-ferrous): 1750, 3500 RPM
Maximum Vise Opening: 6"
Motor: 2 HP, 3 phase, 230 Volts or 460 Volts (choose)
Weight: 760 Lbs.

Available as ferrous cutting or non-ferrous cutting cold saw. Manual feed, manual return. Sturdy gear box design. Manually cuts from 45 left to 45 right. Miter stops at 90, 45 left and 45 right. Double self-centering vise for burr free cuts. Thermal overload protection with magnetic starter.

Jet JFK350-2K metal cutting coldsaw machine

DAKE circular cold saws will give you the finest, high-tolerance mill-grade quality cut of any cold saw on the market.

Metal Cutting Capacity
Click below to
Request a Price Quote

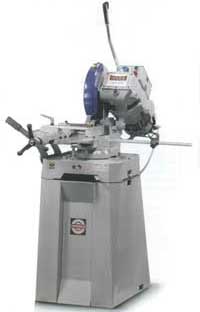

Dake Super Cut Circular Coldsaw machine

Options: Pneumatic Vise, and 78 inch Loading and Unloading Tables

@90: 1 1/4 round solid,
2 3/4 round tube,2 1/2 sq.tube
3 7/8 x 1 3/4 rectangle tube
@45: 1" round solid,
2 3/8 round tube,2 1/8 sq.tube
2 1/2 x 1 7/8 rectangle tube

Dake model Cut 250
10" max blade diameter.
44 rpm. 1.2 HP motor.
Coolant included.
Click to Request this Quote

@90: 2 5/8 round solid,
3 5/8 round tube,3 1/4 sq.tube
4 1/4 x 2 3/4 rectangle tube
@45: 2 1/2" round solid,
3 1/2 round tube,3 1/8 sq.tube
3 1/4 x 2 3/4 rectangle tube

Dake model 315CE
12.5" max blade diameter.
22/44 rpm. 2.5 HP motor.
Coolant included.
Click to Request yjis Quote

@90: 3 3/8 round solid,
4 3/4 round tube,4 1/8 sq.tube
6 1/4 x 3 1/2 rectangle tube
@45: 3 " round solid,
4" round tube, 3 3/8 sq.tube
3 3/8 x 2 3/4 rectangle tube

Dake model 350CE
14" max blade diameter.
22/44/88 rpm.
2/2.2/3.5 HP motor.
Coolant included.
Click to Request this Quote

Cutting Capacity
Click below to
Request a Price Quote
Dake Technics Circular Coldsaw machine Options: Automatic Feed System, 78" loading and unloading Tables

@90: 3 3/8 round solid,
4 3/4 round tube,4 1/8 sq.tube
6 1/4 x 3 1/2 rectangle tube
@45: 3 " round solid,
4" round tube, 3 3/8 sq.tube
3 3/8 x 2 3/4 rectangle tube

Features:
Foot Switch
Rotates 45 right, 60 left
Adjustable Pneumatic Vise
Adjustable Positive Stop
14" max blade diameter
Blade speeds: 22 / 44 rpm.
2.5/3.5 HP motor.
Coolant included.

Dake Technics 350SA
Semi-Automatic Cold Saw
Feeds down by itself. Head returns up automatically after each cut.
Click to Request this Quote

Dake Technics 350A
Automatic Cold Saw
Vise clamps automatically. Head feeds down by itself. After cutting, head returns up automatically and shuts off after the cut. Vise unclamps.
Click to Request this Quote

DAKE Euromatic semi and fully automatic Cold Saws
Head rotates up to 45 right for miter cutting.
Head rotates up to 90 left for slot cutting.
Table has removeable surface wear plates.
Mesh discharge chute for short lengths.
Cutting head has 3 gib guides for accuracy.
Large automatic clamping vise.
Clip brush is self adjusting and fills removeable chip drawer.
Clear acrylic hood with shock assists and electrical interlocks.
3.5/4.5 hp @ 25/50rpm(non-ferrous) or 1500/3000rpm(ferrous)
Capacities:
@90:
4" round solid, 5" round tube, 4" sq.tube, 7 x 4 rectangle tube
@45: 3 5/8" round solid, 5" round tube, 3 7/8 sq.tube, 6 x 4 rect tube

Click to Request a Quote for a Semi-Automatic machine

Automatic Cold Saw with 20 inch shuttle feed up that feeds stock with up to 99 strokes.
Click to Request a Quote for a Fully Automatic machine

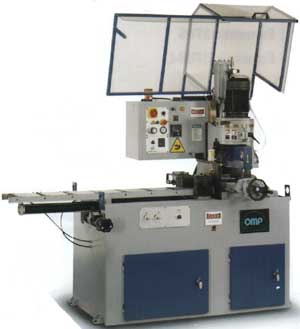

DAKE Euromatic fully automatic cold saw
