MILLING MACHINES
We sell Vertical
and Horizontal Mills to the USA, Canada, and Latin America. Birminghams
are manufactured in China or Taiwan depending on model. Birmingham options
& upgrades are installed in USA. Our best are the Laguns which are
manufactured in Spain with options & upgrades installed in USA. Most
of these mills are very similar to the famous Bridgeport design.
Milling is the process
of machining flat, curved, or irregular surfaces by feeding the workpiece
against a rotating cutter containing a mutiple cutting edges. The milling
machine consists basically of a motor driven spindle, which mounts and
revolves the milling cutter, and a reciprocating adjustable worktable,
which mounts and feeds the workpiece. Milling machines are basically classified
as vertical or horizontal. These machines are also classified as knee-type,
ram-type, and bed type.
Knee-type milling machines have a vertically adjustable worktable resting
on a saddle which is supported by a knee shaped massive casting that rides
vertically on the milling machine column and can be clamped rigidly to
the column in a position where the milling head and milling machine spindle
are properly adjusted vertically for operation. Vertical milling machines
have a spindle located vertically, parallel to the column face, and mounted
in a sliding head that can be fed up and down by hand or power. Modern
vertical milling machines are designed so the entire head can also swivel
to permit working on angular surfaces. Lagun comes with a tilting table.
Lagun horizontal mills offer an optional multi-angle milling head for
complex compound angle work.
Click
to learn how to use a milling machine (warning:
long webpage takes a while to download)
Click for knee type vertical CNC Mills
Click for manual and CNC Bed Mills
| Birmingham
Vertical Knee Mills BPS-1649C 9" x 49" Table Click to Request this Quote • Hardened & Ground Work Table • Hardened & Ground On X. Y. Axis Slide Ways. • Ground Work Table Tee Slots. • Meehanite Casting (optional on BPS-1649C). • 16 Speed, 3HP, 220V, 3phase Motor (1phase motor available) • R-8 Spindle • Quill Travel: 5" • Optional Powerfeed and Digital Readout |
|
| BPV-3949C 9" x 49" Table Click to Request this Quote • Hardened & Ground Work Table • Hardened & Ground On X. Y. Axis Slide Ways. • Ground Work Table Tee Slots. • Meehanite Casting (optional on BPV-3949C). • Variable Speed, 3HP, 220 or 440V, 3phase, Motor (1phase motor available). • R-8 Spindle • Quill Travel: 5" • Optional Powerfeed and Digital Readout |
|
| BPS-1054C
10" x 54" Table Click to Request this Quote • 16 Speed, 3HP, 220V, 3phase Motor (1phase motor available) BPV-1054C 10" x 54" Table Click to Request this Quote • Variable Speed, 3HP, 220 or 440V, 3phase, Motor (1phase motor available). -------------------------------- • Hardened & Ground Work Table. • Hardened & Ground On X. Y. Axis Slide Ways. • Ground Work Table Tee Slots. • R-8 Spindle • Quill Travel: 5" • Optional Meehanite Casting with turcite coated X-ways. • Optional Powerfeed and Digital Readout |
|

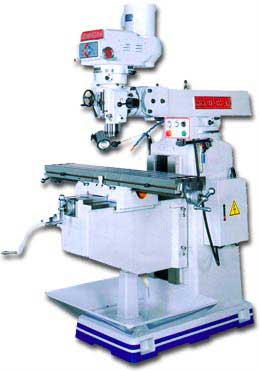

BPV-4KV
Vertical Milling Machine |
 |
|
BPV-B2V
Bed Type Mills (non CNC) |
 |
|
Lagun

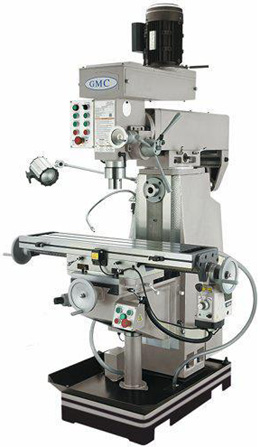

FTHV-3 Combination Horizontal-Vertical Milling Machine |
• Gear hobbing attachment • Rack milling attachment • Slotting attachment • Universal dividing heads • Precision rotary table • Digital Readout • Special electrics - U.L. approved |
|
Lagun

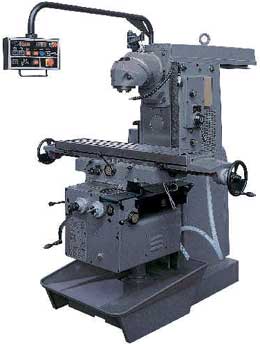

FU-125 Universal Horizontal Milling Machine with Turret Head |
 Options Available: • Multi-Angle Universal Milling Head • Gear hobbing attachment • Rack milling attachment • Slotting attachment • Universal dividing heads • Precision rotary table • Digital Readout • Special electrics - U.L. approved |
| Lagun

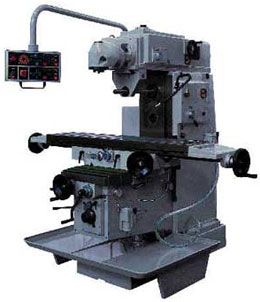

FCM-152 Universal Horizontal Milling Machine Click to Request a Quote for this machine • Power over arm with Universal vertical head and Independent head • Swivel table ±45 degrees • Quality manufactured in Spain. • Flood coolant system • Variable feeds in 3-axis • 3-axis rapid traverse • Pendant controls • Spindle brake • Climb milling control • Central lube system • Hardened and ground ways Table size: 60" x 12 ¾" Maximum weight on table: 880 lbs. (400 kg) Table travel X-axis: 41 3/8" (1050 mm) Cross travel, y-axis: 13" (330 mm) Knee travel, Z-axis: 18 ¾" (475 mm) Distance from spindle to overarm: 5 ¾" (147mm) Horizontal Spindle Taper: No. 40 Main spindle diameter: 3 ½" (88 mm) Arbor milling diameter: 1 1/16" (27 mm) Variable speeds: 35 to 1899 RPM Main spindle motor: 7.5 HP Feed & Rapid traverse motor: 2 HP Machine weight: 6390 lbs. (2900 kg.) |
 Options Available: • Multi-Angle Universal Milling Head • Gear hobbing attachment • Rack milling attachment • Slotting attachment • Universal dividing heads • Precision rotary table • Digital Readout • Special electrics - U.L. approved |
| Lagun
FT-1 & FTV-1 Vertical Mill Click to Request a Quote for this machine • Head Type: Step Pulley or Variable Speed • Spindle Step Pulley Speeds (Hi-Low): 8 Speed, 63 to 3000 RPM • Quality manufactured in Spain. • Spindle Taper (diameter): R-8; • Optional Spindle Taper #40, NST 30 or Universal (3 3/8" = 85mm) • Head Rotation: Left & Right; Backward & Forward (Knuckle Joint) • Spindle Motor: FT1 step pulley 2 HP // FTV1 variable speed 3 HP • Table Size: 44" X 10" (1,118 x 254mm) • Table & Cross Travels: 30" x 16" (762 x 406mm) • Square Ways for Rigidy and Dove Tail Guides for Accuracy • Max Uniform Load Capacity: 750 Lbs. (907kg) • Machine Weight: 2600 lbs (1179kg) Machine Options Table size:
44" x 10" 1118 x 254mm |
• Power feeds: longitudinal, cross and vertical • Digital Readouts: 2 & 3 axis readout • Square Ways: hardened and ground • Machine work light • Special electrics - U.L. approved |
| Lagun
FT-2 & FTV-2 Vertical Mill Same as the FT1 & FTV1 but with larger table and more options Click to Request a Quote for this machine • Choose Step Pulley FT2 or Variable Speed FTV2 (55 - 4250 rpm) • Quality manufactured in Spain. • Step pulley spindle speeds: 8 Speed (63 - 3000 rpm) • Spindle Taper: R-8 • Optional: #40, NST 30 or Universal (33 3/8"; 85mm) • Head Rotation: Left & Right; Backward & Forward (Knuckle Joint) • Spindle Motor: FT2 step pulley 2 HP // FTV2 variable speed 3 HP • Table Size: 50" X 10" (1,270 x 254mm) • Table & Cross Travels: 33" x 16" (838 x 406mm) • Square Ways for Rigidy and Dove Tail Guides for Accuracy • Maximum Uniform Load: 750 lbs. (907kg) • Machine Weight: 2700 lbs (1179kg) • Power, Dual Voltage Motor: 220/440 Volts |
Options
Available: • Electronic Variable Speed • Chrome lead screws (X & Y) • Auto lubrication • Power feeds: longitudinal, cross and vertical Hardened/ground square ways • Extension servo kit (adds 3" to power feed) • Digital Readouts: 2 & 3 axis readout • Power draw bar, air • Right angle attachment • Spindle Taper #30 or #40 - Standard or Erickson • Quick change #40 collet chuck, 12 collets • Way covers, Cross & Vertical • Base Chip Pan • Riser block: 4", 8", or 12" • Special electrics - U.L. approved |
|
Lagun FTV-4L
& FTV-4L-SP Heavy Duty Vertical Milling Machines • Extra
Large Table Size: 58" X 11" (1,437 x 279mm) Table travel
X-axis: manual with power feed 39" (991mm) / 38" (965mm) Cross travel,
Y axis: 15" (381) |
Options Available:
|
| Lagun

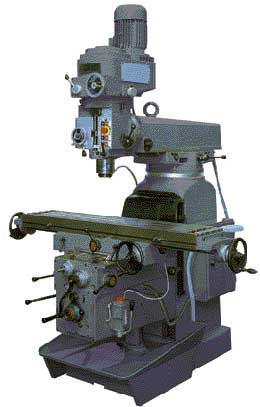

FTV-510 and FTV-510-SP Extra Heavy Duty Milling Machines Click to Request a Quote for this machine Extra Large Table Size: 58" X 11" (1,437 x 279mm) Maximum Uniform Table Capacity: 1200 lbs. (550 kg) Spindle motor: 5.5 HP / Optional 7.5 HP Infinitely variable speed (70 to 4200 rpm) Spindle Taper: #40 NST Power and Rapid Feeds: in all 3 axes (Longitudinal, Cross, Knee) Extra Table Longitudinal X Handwheel on Front of Saddle. Square Ways for rigidity and Dove Tail Guides for Accuracy - Hardened and Ground Square Ways Head Rotation: Left & Right; Electrics: 220/440 Volts; 60Hz; 3 Phase NEMA-type Enclosure with disconnect switch and push button controls on head. Model FTV-510-SP: Special Precision with Longitudinal & Cross Ball Screws, 3 Axis Digital Readout, Telescopic Metal Way Cover, Power Draw Bar. Construction Features • All geared power feeds, longitudinal, cross, and vertical with power rapid traverse, all three directions. • Centralized dial feed selection, front of knee • Adjustable overload safety clutch, and table stops • Precision hardened and ground ways; dovetail guides • Precision hardened and ground back gear • Round tooth timing belt for high torque at low speeds • Convenient front located locks for table, knee, and saddle • Additional (third) manual table traverse handwheel • Monoblock feed gear box, for easy removal and service • Hard chromed quill with precision ground rack • Four spindle bearings, (Fafnir p-4), super precision • One shot central lubrication system • Double nut anti-backlash system, both screws • Anti-friction bearings used throughout the machine • Head assembly swivels left to right • Complete flood coolant system • Base chip pan Table travel X-axis, manual with power feed 39" (991mm) 38" (965mm) Cross travel, Y axis 15" (381) Knee travel, Z axis 16 1/8" (410mm) Ram travel 22-3/16" (563mm) Distance, spindle to column 5 to 27" Distance, spindle to table 0 to 18" (0 to 457mm) Quill Power quill feeds to quill/rev. .0015, .003, .006 inch/rev Quill travel 6" (152mm) Machine Weight: 4,900 lbs. (1,814 kg) |
Options Available:
|
