Surface Grinder Machines

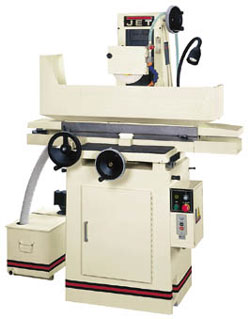

Surface grinders
are used for various grinding processes including truing flat metal stock,
squaring material within tenths, sharpening cutting tools and for sharpening
punch and die sets. A surface grinder normally consists of a magnetic
chuck, which resembles a table, the grinding wheel that is attached to
a rotating spindle, and a few handwheels (if manually operated). The workpiece
is placed on the magnetic chuck and the chuck is then activated either
by a switch or lever. When the chuck is activated the part is then held
firmly to the magnetic chuck. The grinding wheel is then moved down to
the top of the workpiece using a handwheel, until the grinding wheel touches
the part (carefully), then you can begin moving the table side to side
and front to back until the entire surface of the part is ground. If more
of the surface needs to be ground, move the table so the grinding wheel
is off the workpiece and lower the grinding wheel about 0.0002" to 0.0004"
using the tick marks on the handwheel and begin moving the table again,
this process can be repeated until the desired dimension is accomplished.
Our automatic machines move back and forth under hydraulic power via settings
on the control panel. A digital readout is a recommended option for precision
surface grinders. Remember to follow all safety rules for surface grinders
as these machines can be dangerous if used improperly. Eye protection
is a must.
Republic
TCG-1016 Universal Cutter & Tool Grinder
•
10" swing
x 27 ½" center distance.
•
Highest
quality Meehanite casting with outstanding rigidity and vibration
dampening.
•
Tilting
wheelhead for easy clearance setting. Wheelhead is designed to tilt
+/- 15 degrees. It can also be swiveled 360 degrees on the horizontal
plane. These features make it very easy to set rake and relief angles
and provide for a wide angle of grinding. Grinding wheels can be mounted
on both ends.
•
Table slideways
are Hardened and Precision Ground. Table is mounted on anti-friction
slideway ball bearings, controlled by table cable on take-up reels
for backlash-free operation. Fingertip control of table movement is
by coarse and fine feed table feed knobs on right and left side and
rear.
•
Universal
Workhead can be swiveled at any angle horizontally and vertically.
Both ends have a taper hole (#50 taper at one end, MT5 or B&S #12
at other end). |
|
|
GMC Precision
Manual Surface Grinder
Made in Taiwan
(not China) ISO 9001 factory Precision roller ball ways Heavy
duty "Meehanite" casting Roller tracks are Turcite-B coated for
long life "Turcite B" Coating on slide ways Double Vee cross
slide Complete coolant system included Full length splash guards
Over 300 pounds table load capacity Hardened & precision ground
& hand scraped ways Dynamically balanced spindle run-out within
0.0002" Safety 24V low voltage electric controls & overload protection
Automatic continuous lubrication for all ways & lead screws
Adjustable longitudinal table stops and cross feed lock (4) preloaded
class 7 high precision angular contact spindle bearings for precision
grinding Main Motor: 2 HP, 208V/220V/230 Volts, 3phase (optional:
440V/460V, 3phase) One year warranty for parts Halogen work
light installed Grinding wheel with flange, 8" dia. x 3/4" thick
x 1-1/4" bore Grinding wheel extractor Diamond wheel dresser
with base Balance stand, wheel wrench & balance arbor
|
Specifications
|
GMSG-618M
Click
to Request
this Quote
|
GMSG-818M
Click
to Request
this Quote
|
| Table
(chuck) size |
6
x 18"
|
8
x 18"
|
| Table
load capacity |
300
Lbs
|
300
Lbs
|
| Max
griding size, W x L |
6.25
x 18.75"
|
7.87
x 18.75"
|
| Max
longitudinal travel |
18.87"
|
19"
|
| Max
cross travel |
6.31"
|
9"
|
| Cross
handwheel graduation |
0.001"
|
0.001"
|
| Cross/handwheel
revolution |
0.05"
|
0.05"
|
| Vertical
downfeed handwheel graduation |
0.0002"
|
0.0002"
|
| Vertical
downfeed per handwheel revolution |
0.05"
|
0.05"
|
| Max
distance - spindle centerline to table |
16.5"
|
16.5"
|
| Spindle
speed |
3600
RPM
|
3600
RPM
|
| Grinding
wheel size |
8"dia
x 3/4 x 1.25
|
8"dia
x 3/4 x 1.25
|
| Spindle
motor |
2
HP
|
2
HP
|
| Coolant
pump |
1/8
HP
|
1/8
HP
|
| Coolant
tank size |
8
gallons
|
8
gallons
|
| Overall
machine size |
55"
x 41" x 79"
|
63"
x 49" x 79"
|
| Machine
weight (pounds) |
1720
Lbs
|
1980
Lbs
|
|
OPTIONS:
• 6 x 18" magnetic chuck
• Dust collector
• Newall C80 Digital Readout
• Parallel Dresser
• Rotary Phase Converter
|
|
BIRMINGHAM
Surface Grinder
Made
in China
Specifications
|
Model
WSG-618
Click
to Request
this Quote
|
Model
WSG-818
Click
to Request
this Quote
|
| Table
(chuck) size |
6
x 18"
|
8
x 18"
|
| Max
griding length |
18.50"
|
19.75"
|
| Max
grinding width |
6.50"
|
8.25"
|
| Spindle
center to table - Maximum |
15.75"
|
19.75"
|
| Max
longitudinal travel |
19"
|
21.62"
|
| Max
cross travel |
7"
|
9"
|
Longitudinal
travel
per revolution |
4.125"
|
3.937"
|
| Cross
travel per revolution. |
.2"
|
.2"
|
| Cross
travel per graduation |
.0008"
|
.0008"
|
| Vertical
travel per revolution |
.05"
|
.05"
|
| Vertical
travel per graduation |
.00025"
|
.00025"
|
| Peripheral
speed of wheel |
110
feet/sec
|
110
feet/sec
|
| Spindle
speed |
3600
RPM
|
3600
RPM
|
| Grinding
wheel size |
8"
dia x 1/2" x 1.25"
|
8"
dia x 1/2" x 1.25"
|
| Spindle
motor |
2
HP
|
2
HP
|
| Coolant
pump |
.05
HP
|
.05
HP
|
| Lubricating
pump |
.02
HP
|
.02
HP
|
| Overall
Dimension |
55"
x 39" x 71"
|
59"
x 47" x 72"
|
| Net
weight (pounds) |
1600
|
2350
|
|
Standard
Features:
• Fine Graduation on Travels
• Cartridge Wheel Spindle
• Smooth Roller Way Table
• Auto Lubrication on Leadscrews & Ways
• Fine grain high tensile casting
• Includes Grinding Wheel and Flange
• Wheel Balance Arbor
• Diamond Wheel Dresser
• Work Light
• Coolant System
• Standard Permanent Magnetic Holder
• Tool Box • Hoisting Set • Leveling Pads
|
|
GMC Precision
Automatic Surface Grinder
Made
in Taiwan (not China). High Precision machine with automatic hydraulic
powered traverse. Optional variable automatic down feed on V type
guideway via NC contol. Extra heavy table load capacity.
| Specifications |
Click
to Request this Quote |
| Capacity |
8
x 20" |
| Grinding
Area (W x L): |
8.5
x 20" |
| Max.
Table Load |
680
Lbs |
| Max.
Manual Table X Travel |
20" |
| Max
Automatic Table X Travel |
20" |
| Table
Speed - longitudinal X direction |
3
to 82 feet/min |
| Max
Table Cross Travel |
9" |
| Cross
travel rapid traverse |
48
inches/min |
| Cross
Feed per Automatic Pass |
0.006
to 0.30" |
| Cross
handwheel graduations |
0.001" |
| Cross
handwheel per revolution |
0.2" |
| Table
to spindle centerline -max. |
16.25" |
| Wheel
size |
8"
dia x 3/4" |
| Wheel
Center Bore |
1.25" |
| Spindle
Speed |
3600
rpm |
| Spindle
motor |
3
HP, 230 volts, 3phase |
| Hydraulic
pump motor |
1
HP |
| Cross
feed motor |
1/2
HP |
| Coolant
pump |
1/8
HP |
| Optional
automatic down feed motor |
1/4
HP |
| Machine
size |
100
x 62 x 86 |
| Machine
weight |
2900
Lbs |
|
• ISO 9001
factory
• Precision roller ball ways
• Heavy Duty Meehanite Casting
• Roller tracks are Turcite-B coated
• Turcite B Coating on ways
• Double Vee on cross slide
• Complete coolant system included
• Full splash guards
• Hardened & precision ground & hand scraped ways
• Dynamically balanced spindle run-out within 0.00008
• Automatic continuous lubrication for all ways and leadscrews
• Safety 24V low voltage electric controls & overload protection
• Automatic continuous lubrication for all ways & leadscrews
• Adjustable longitudinal table stops and cross feed lock
• (4) preloaded class 7 (P4) high precision angular contact
spindle bearings for high precision grinding
|
|
Geibel
& Hotz Precision Automatic Column Type Surface and Profile
Grinding Machine
• • • German design for extra high precision
work • • •
• Choose from Table sizes 8 x 16, 16 x 24, 16 x 32 or
18 x 41"
• X
and Y guideways are Vee and flat for maximum evenness and
stability for axes movement as opposed to the standard twin-V
guideway design.
• The Automatic Vertical Feed System with Digital readout
can be set for plunge or surface grinding. The automatic infeed
is infinitely variable. The infeed can be adjusted by a mechanical
handwheel at any time.
The roughing infeed is infinitely variable between 0.002 mm
(.0008") and 0.025 mm (.001"). The finish rate of
infeed is variable to 0.001 mm (.0004") per step. The
number of spark-outs can be selected, and the lift-off travel
is adjustable.
• When grinding in an automatic cycle the position of
the grinding surface is indicated digitally. The amount of
wheel dressing can be compensated or the grinding dimension
can be corrected during the grinding operation by mean of
a push button (+/- 1 micrometer).
• The machine base is well ribbed to provide extreme
rigidity and excellent dampening.
• Entire machine is automatically lubricated by a centralized
system.
• In intermittent transverse feed, length of the infeed
steps can be pre-selected or the infeed rate may be continuous.
• Table longitudinal stroke length is controlled by maintenance-free
non-contact switches.
|
• The precision grinding spindle uses precision angular
contact ball bearings sealed for life, requiring no maintenance.
This spindle is suitable for the entire range of grinding
wheels from bonded ceramic type to diamond grinding wheels.
• Self-contained low pressure hydraulic drive system.
• Centralized control console mounted on articulated
arm with all control functions and digital readout of vertical
movement.
|
Geibel & Hotz
SPECICATIONS |
|
|
|
|
| Maximum
grinding range |
15.75
x 7.87
400 x 200 mm
|
15.75
x 23 5/8
400 x 600 mm
|
31.5x
15.75
800 x 400 mm
|
40x
19.7
1000 x 500mm
|
| Maximum
table longitudinal movement |
16.53
420 mm
|
26
660 mm
|
33.5
850 mm
|
41.3
1050mm
|
| Maximum
transverse movement |
7.48
190 mm
|
14.17
360 mm
|
15.00
400 mm
|
20
500mm
|
| Maximum
distance table to spindle center |
16.34
415 mm
|
20
5/8
525 mm
|
20
525 mm
|
24.6
625 mm
|
| Maximum
distance, bottom of wheel to table |
12
305 mm
|
12
305 mm
|
15
375 mm
|
16.7
425mm
|
| Max
Table load |
330
lbs.
150 kg.
|
880
lbs.
400 kg.
|
1,570
lbs.
700 kg.
|
3,090
lbs.
1380 kg
|
| Table
speed, hydraulic, variable |
6.52
to 92 FPM
2 to 28 m/min
|
6.52
to 92 FPM
2 to 28 m/min
|
6.52
to 92 FPM
2 to 28 m/min
|
6.52
to 92 FPM
2 to 28 m/min
|
| Transverse
movement, rapid traverse |
40
IPM
1m/min
|
40
IPM
1m/min
|
40
IPM
1m/min
|
40
IPM
1m/min
|
| Transverse
movement, automatic (intermittent or continuous) |
0.118
to 0.787
3 to 20 mm
|
0.118
to 1.575
3 to 40 mm
|
0.118
to 1.575
3 to 40 mm
|
0.118
to 1.575
3 to 60
|
| Power
input, grinding wheel motor |
3
HP
2.2 kW
|
5
HP
3.7kW
|
5
HP
3.7kW
|
12HP
/ 17 HP
9 kW / 12.75 kW
|
| Total
connect load including grinding wheel, hydraulic pump, horizontal
traverse and vertical rapid traverse |
6.75
HP
5.0 kW
|
10.75
HP
8 kW
|
11
HP
8 kW
|
20
HP
14.4 kW
|
| Machine
weight |
2,310
lbs.
1,050 k
|
4,620
lbs.
2,100 kg.
|
7,720
lbs.
3,400 kg.
|
9,350
lbs.
4,250 kg.
|
|
Click for American
Machine Tools Company Homepage
|
