Chicago
Dreis & Krump
Metal Bending and Shearing Machines.
Scoll down to see hydraulic press brakes, hydraulic folding machines,
power leaf brakes, hand brakes, box and pan forming brakes, hydraulic
shears and bending roll machines brought to you by American Machine
Tools Corp.
Click if you need Chicago
Dreis & Krump repair Parts - please name the type of machine, the
model number, serial number and tell us what part you need.
Hydraulic Press Brakes
45 to 300 ton capacity. Easy to program
NC ram height and NC back gauge, ball screw driven with vertical
height adjustment.
- All steel
welded construction.
- Tonnage
indicator with adjustable load control.
- Sectional
ram clamping bars.
- Adjustable
slow down switch.
- Die holder.
- Mechanical
leveling - torsion bar.
- Electronic
stroke counter.
- NC back
gauge, ball screw driven with vertical height adjustment.
- Full
length dovetail slot.
- Deflection
compensator built into bed top.
We sell the
die sets too; 90°, 86°, 30°, hemming, special purpose, etc.
|
Click to see Hydraulic
Press Brake Page
|

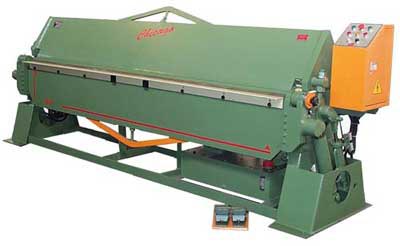

Standard and Box and Pan Capable
Hydraulic powered Bending Brakes
Chicago
Dreis & Krump adds hydraulic power and push button bending
to its legendary sheet metal hand brake family because you
can save time, effort and money with all the extra muscle.
These machines are easy to operate. The bend angle control
is an adjustable dial which completely eliminates the need
for press brake dies and related time consuming setups.
This machine can also form your coated or polished metal
without a scratch. These durable, labor saving, high performance
work horse machines are totally self contained with a hydraulic
power unit to give you powered clamping and bending. You
will be able to accurately bend standard or special design
forms and can even make 1/4 inch reverse bends
on thin gauge steel with the optional 1/4 inch insert
bar.
|
Click to
go to Hydraulic Folding Machine Page
|
Standard and Box and Pan Capable
Hydraulic powered Bending Brakes
Heavy
duty machinery construction. Designed for accurate and economical
bending of standard and special design forms. Ideal for bending
mild steel with a 1 inch minimum flange to the rated capacity
of the machine. Capable of 1/4 inch reverse bends on lighter
material.
Optional Accessories:
• Back Gauge - 25 1/2 inch travel
• Insert Bar - 1/4 inch
The
Box and Pan version
has sectioned finger nose bar segments that can bend any length
of metal from 3 inches long to the full length of the machine.
Boxes and pans up to 6 inches deep.
Optional Accessories:
• Back Gauge: 25 1/2 inch travel
• Extension Fingers
• Open End Fingers
• Fingers to meet specific requirements
• Radius Nose Bars
• Insert Bar - 1/4 inch
|
Click for Sheet
Metal Hand Brake Page
|
Standard and Box and Pan Capable
Hydraulic powered Bending Brakes
•
All steel welded construction
• Swing beam design
• Hydraulic hold-downs with nylon pads
• Blade gap adjustment
• Electric foot switch
• Electronic stroke counter
• Numerically Controlled powered back gauge with retract
• Length of stroke control
•
Unitized hydraulic manifold
• Front gauge-support arms with scales and flip stops
• Squaring arm with scale
• Back gauge retract
• Ball supports
• Shadow line
|
Click
to the Hydraulic Shear page
|
Standard and Box and Pan Capable
Hydraulic powered Bending Brakes

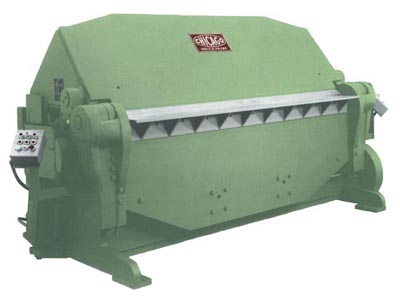

Bend
from 10 gauge to 3/4 inch steel. Standard or Box & Pan, in
regular, medium and heavy duty capacities. Every model we
sell includes power clamping and motorized top leafs for maximum
productivity. Everything is solidly built to last for many
years, from the welded steel plate frames with box type support
for maximum strength to the powerful gear head motors with
built-in magnetic brakes. These machines offer the kind of
staying power and efficiency that includes radius bending
abilities usually associated with roll forming equipment or
stamping presses. Our
Box and Pan versions are just as rugged and stable as our
standard models. The sectional, adjustable, finger assemblies
even let you bend five sided boxes, pans, and other shapes
such as tubes, with ease.
|
Click
for metal bending Power Leaf Brake
|
Plate Bending Roll Machines
This
machine is total push button operation to make your metal
rolling easy! Positioning
of the rear bending roll is done hydraulically via push buttons
and allows the operator to tilt it for cone forming.
bearings on all three rolls minimize friction loss. The rear
bending roll is equipped with a digital readout indicating
its position for accurate repeat forming. Push
button hydraulic opening of the top roll bearing assembly
for easy finished part removal. The
lower pinch roll has our special hydraulic powered "quick
gap set" which is a real time saver for metal thickness set
up. The pinch roll is also easily tiltable for cone rolling.
An moveable attachment for making cones is included. The
frame is made of heavy welded steel construction. The rolls
are machined from forged steel and heat treated to RC45. Strong
spherical roller An emergency stop button and keylock on/off
power switch are centrally located on the control panel.
|
Click
for plate Bending Roll Machine
|
