PLASMA CUTTING TABLES

Standard Gator Plasma Table Machine: $36,950. CLICK TO REQUEST A FORMAL QUOTE
Standard machine accuracy is +/- .012 inch.
OPTION 1: PicoPath CNC Control System and software: $2995. extra
OPTION 2: "PLASMA-DUCT" Configuration with ShopData HVAC software: $9995. extra
OPTION 3: Increased accuracy to +/- .007 inch: $5995. extra

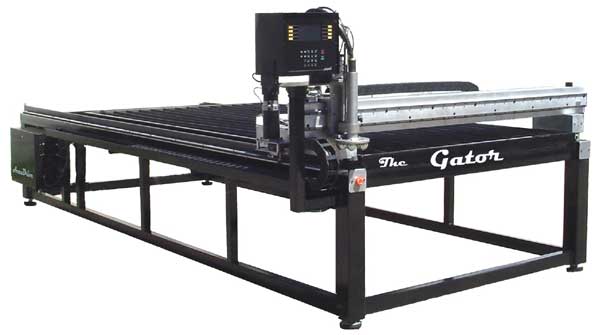

The "Gator-510" shape cutting machine with High Speed 60 amp Plasma cutting system, AccuDrive HD-750 Servo drive system, Rack and Pinion for Traverse and Rail Axis with energy chain, DACC3002 Pneumatic lifter, PicoPath CNC controller, and 60" X 120" downdraft cutting table.

Finally a machine designed for maximum versatility for operation, productivity, speed and performance. Models available with speeds from 1000 IPM to an unbelievable 2500 IPM traverse speeds (optional) with cutting capabilities up to 1 inch material (optional). The "Gator" has a standard cutting width of 60 X 120 inches. The "Gator" brings a new dimension to plasma cutting machines with our "Smart Interface", "Linear Positioning Crossdrive System", Rack and Pinion drive System and our new Aluminum frame design. The "Gator" will come complete with CNC controller, Servo Drive System, Plasma cutting System, Cutting Software and Cutting table. All this and starting with a price tag of only $36,950.

PLASMA TABLE FEATURES:

Fast and smooth frame design:
The Aluminum frame design of the "Gator" provides many benefits such as an overall lighter weight allowing the "Gator" to have faster acceleration, greater speeds, and better corner performance. The wide footprint and tapered back brace allow the "Gator" to be stable over the full speed range of the machine giving it unequaled performance. The spiral brushed Aluminum frame does not peel or crack like other painted machines. This allows the "Gator" to be cleaned easier and maintain a long attractive life span.

Drive System:
The “Linear Positioning” crossdrive system was engineered to be stable and accurate. By engineering a more efficient motor transport system while still maintaining our Rockwell C60 linear V-rails and our compact carriage assembly. The "Gator" is another reason why DACC cutting machines are creating new standards in machine performance.

Upgrades Available:
OPTION 1: PicoPath CNC Control System and software: $2995. extra
OPTION 2: "PLASMA-DUCT" Configuration with ShopData HVAC software: $9995. extra
OPTION 3: Increased accuracy to +/- .007 inch: $5995. extra
Update your "Gator" to the "Super Gator" and this will give you the lowest priced Precision Plasma cutting system on the market. The 100 amp "Super Gator" FineLine Plasma cutting system gives superior performance including automatic gas control, touch screen operated Height control and Plasma Marking for under $80,000 or upgrade to the 200 amp version under $90,000. Also we offer a 200 amp without automatic gas control starting under $70,000.

Small footprint with big value:
The "Gator" Shape Cutting Machine is a Gantry machine that uses only 20% more space than its own cutting width. This new design also gives increased stability over the full speed range of the machine. With speed options available up to 2500 IPM, this can make a real difference in productivity and performance.

Cutting Size:
The "Gator" has a standard cutting width of 60 X 120 inches. You can also order the "King Gator" with a 60" X 240" cutting table

Standard Equipment:
DACC Gator Aluminum Frame
DACC 3002 Floating Pneumatic Lifter
IGUS X and Y axis Energy Chain
Traverse travel Speeds up to 2500 IPM
High Speed 60 amp Plasma cutting system
AccuDrive 750watt 19khz PWM Servo Drive system
DACC Rack and Pinion gear system
DACC Heavy Duty Steel Rail and Table Frame
Adjustable CNC mount for 0deg., 15deg., and 30deg. tilting
Adjustable table slats for curved, straight, or doubled layouts
60" X 120" Ergonomic designed sealed Downdraft table
4 Anti-vibration adjustment pads for precise leveling of equipment
Set up for RS-232 DNC communication

Electricals:
220 volts, 3 phase power for plasma (Electrician required for electrical hookup)
440 volts or 220 volts, single phase 220 volts optional.
Single phase 120volt A/C 60cycles for electronics on machine (Electrician required)

----------------------------------------------------------------------------------------

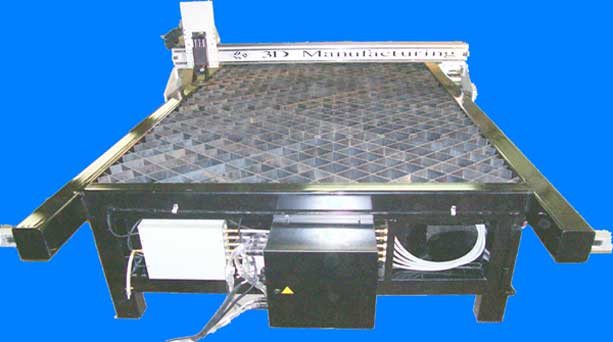

3D Manufacturing Company builds CNC Plasma cutting tables in 2 types available in a variety of configurations for you. Start with the model EL or the Razor Cut Precision. Choose the table size, power supply, controller and options such as downdraft ducting.

The EL plasma tables come in 4' x 8' and 5' x 10' sizes. These tables are built with an extra 2" in both length and width of the cutting area to allow for easy positioning of full 4' X 8' or 5' X 10' sheet of material, respectively. A rear park zone is provided to simplify loading by moving the gantry and torch mount completely clear of the cutting surface. A similar front park zone makes changing torch tips easier since the torch is clear of the cutting surface and easily accessible. It comes equipped with a smoke evacuation chamber that can be easily connected to an air filtration system. This is a welcomed advantage in today's EPA regulated manufacturing environment. Precision 20mm gantry rails. Self adjusting X & Y servo-motor rack & pinion drive system. Operates at 60 Amps with 60% duty cycle. Can handle up to 1.5 inch thick plate when equipped with proper options. EL 5' x 10' Plasma Table : $44,900. CLICK TO REQUEST THIS QUOTE

The Razor Cut Precision plasma tables come in 4'x 8', 5' x 10', and 6' x 12' sizes. These high end tables are built with an extra 2" in both length and width of the cutting area to allow for easy positioning of full size sheet of material. A rear park zone is provided to simplify loading by moving the gantry and torch mount completely clear of the cutting surface. A similar front park zone makes changing torch tips easier since the torch is clear of the cutting surface and easily accessible. This is especially useful with the larger more complex tip assemblies used on the Ultra-Cut® and Spirit® Power Supplies. It comes equipped with a zoned smoke evacuation system that decreases the size of the needed air filtration system by 80%. This is a welcomed advantage in today's EPA regulated manufacturing environment.
Razor Cut Precision 5' x 10' Plasma Table: $122,000. CLICK TO REQUEST THIS QUOTE
Includes Thermadyne UltraCut 150 High Definition power supply. 100 Amps, 60% duty cycle. ProMotion CNC. 35mm Rails. Repeats +/-.003". Full lenth paralell +/- .03".
OPTION 1: Larger 6' x 12' Plasma Table: $19,500.
OPTION 2: Upgrade to Kaliburn Spirit 150A High Definition power supply: $3000.
150 Amps, 100% duty cycle.
OPTION 3: Add AER Dust & Fume Collector: $19,500.
OPTION 4: Adjustable Torch Height Options priced on request.

Each Razor Cut Precision is equipped with a segmented table grid allowing easy replacement, and zoned evacuation/scrap collection chambers which minimize the dust collector size thus reducing the cost of the dust collector. A wide selection of power supplies is available to suit the individual needs of the customer. The table is constructed of 4 X 6 structural steel tubing welded and machined for accurate location of the gantry rails and gear rack. The gantry is also constructed of 4 X 6 structural steel tubing mounted to the rails on aluminum side plates using dual linear motion bearings on each side which gives smooth, rigid, and accurate motion. The Z axis mount rides on the gantry using dual rails and four linear motion bearings giving it smooth, rigid, and accurate motion as well. The Z axis mount holds the cutting torch securely and accurately and like the X and Y motion is controlled by the Promotion iCNC. There is a park zone on each end of the table allowing easy access for material positioning and removal. A front end park zone allows the torch to hang over the end of the table making access for tip removal and replacement much easier.

3D Manufacturing provides several torch height controllers to meet your application. Light sheet metal and HVAC users will find the plate follower easy to use and highly reliable. Customers cutting heavier metal, especially pieces that are not perfectly flat will prefer the Thermal Dynamics SC-11.
Those doing High Definition cutting with expensive torch tip assemblies will prefer the Kaliburn Inova with its gimbaled breakaway mount that protects the torch should a collision occur.

CNC Controllers and Drive Motors:
The system is controlled by a Promotion iCNC Controller capable of running a variety of CAD/CAM formats. It allows rapid accurate positioning for multiple work areas, and is equipped with automatic limit switches to prevent over travel of the gantry and Z-axis mount. On start up the controller uses the limit switches to locate the side and end of the table. Once it does it backs off to a predetermined location and establishes the absolute zero location for the machine. It is then programed with predetermined soft limits which slow the machine as it approaches the edges of the table, in jog mode, and stops it short of the limit switches which now serve only as a secondard safety device. The rugged drive motors are geared to provide up to 1000 inches/second repositioning speeds when it is necessary to relocate the gantry for material positioning and removal. They are spring mounted to insure full contact with the drive track, which eliminates backlash and variation in transit speed due to gear lash inherent in fixed systems. Control cables are fully shielded to prevent high frequency interference from high power and high definition plasma power supplies. Position sensing is done by resolvers which are more tolerant of noise than encoders.
The Controller is equiped with dual processors One exclusively controls the cutting operation while the second controls WindowsXP and the nesting and previewing window. This allows the machine to cut a program without interuption while the next set of parts are being loaded and nested. Included in the software package are many basic shapes that are regularly used in manufacturing and basic replications. Also included is a fully capable copy of ProMotion Nest which can add and change pierce points, nest pieces and change the cut order.

BobCAD - CAM V21 is the world Leader in powerful and affordable CAD/CAM software. It provides both 2D & 3D capabilities and is an easily mastered package. CD and training manual are included. Licenses for additional seats can be provided at a reduced cost. An excellent CD training package is available for support on demand. V21 SOFTWARE BobCAD-CAM Version 21 introduces new external file compatibility, powerful CAD wireframe, surface and solids, technology and user friendly machining operations for 2D and 3D part making. Version 21 proves that advanced CAD-CAM software can be powerful and loaded with part making functionality, yet still easy to use while also being affordable enough for any shop! From basic 2D machining operations to model design and mold making BobCAD-CAM Version 21 provides you the toolpath and G-code to cut your parts FASTER...SMARTER & EASIER!

ProMotion Nest Software can increase your gas and plasma cutting productivity. It runs in ProMotion CNC Controllers but it is also available as office software that can be used with any CNC cutting machine capable of reading ESSI or EIA cutting programs. From CAD-Drawings to Cutting ProMotion Nest is powerful software for creating efficient cutting programs directly from standard (DXF) CAD drawings. ProMotion® Nest runs in any Windows® 95/98/Me/NT/2000/XP environment. ProMotion® Nest creates cutting programs in EIA/ESSI-code for any CNC-system as an option.

The ProNest system has been specifically designed to meet the most demanding requirements of 2-axis profile cutting applications. The combination of best-of-class material utilization, powerful, easy to use editing and productivity tools, and uniquely flexible control over cutting techniques, cutting parameters and CNC output make ProNest the ideal solution for any manufacturer or fabricator. Productivity and Efficiency The ProNest system has been specifically designed to meet the most demanding requirements of 2-axis profile cutting applications. The combination of best-of-class material utilization, powerful, easy to use editing and productivity tools, and uniquely flexible control over cutting techniques, cutting parameters and CNC output make ProNest the ideal solution for any manufacturer or fabricator. The advanced nesting algorithms used by ProNest result in exceptional material utilization without sacrificing nesting speed or flexibility. ProNest’s unique Optimization feature allows you to automatically evaluate different nesting strategies, plate sizes and inventory objectives to determine the low-cost solution based on your real-world criteria.

Design2FAB is a stand-alone MTC software application that may be used in conjunction with TurboNest or ProNest Whether the application is HVAC duct, Mechanical, Kitchen, Industrial, Roofing or specialty, Design2FAB is known for its superb versatility. Complex custom fitting layouts may now be created in minutes not hours! In fact, Design2FAB is so easy-to-use, even a beginner to the trade can make fittings!
Design2Fab offers the following:
Complete library of shapes – square, rectangular, round, oval, transitions, elbows, pipe, specialty.
Accounts for metal thickness on bend allowance.
XY or True length coordinates
Shear lists and Labels
Seamless integration with Estimating module
Production reports for metal, cleats, lining, vanes, hangers etc.
Scaled 3D/2D views of fitting and patterns
Designed with industry standards
Automatic job costing or estimating.
Automatic gauge selection features
Square footage and weights
Production Labels
Shear lists (manual layout)
Technical calculator built-in
User control of round and curved edges
