Double Column Band Saw Machines:

When the head of a band sawing machine travels down on 2 posts, it is called a Dual Column type of bandsaw. The terms dual-column, dual-post, twin-post are used interchangeably. This design is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut. This design keeps the blade from walking. They come in almost every size you could possibly want for cutting large pipe and structural shapes. Many options available. A swivel vise allows miter cutting. For frequent miter cutting we can build a saw with a special swivel head. If for some reason you dont see the twin post band saw you need, ask us to quote you a machine made special just for your work.

We offer high quality Canadian made Verticut machines for those of you who are looking to get a fantastic bandsaw machine for a price that is less than a most imports. Many of our Verticut twin post band saws are ready except for the electrics that take only 2 or 3 weeks for final assembly in the factory in Ontario, Canada.

The American made WF Wells factory has been making their heavy duty horizontal band saw machines in the USA since 1949. The big ones are built to order, the rest are available in 1 or 2 weeks. Call our office to learn more.

VERTICUT Double Column Band Saw Machines:

STANDARD FEATURES:
Dual post saw design for straighter cuts as head descends
Linear bearings for maximum saw head stability
Cutting feed rate hydraulically controlled
Load sensing valve stops the feed if the blade starts to overload, such as when cutting the web of structural shapes
Hydraulic lift of the saw head
Saw up travel can be set to minimize distance between the blade and the top of the material
Saw down travel can be set to allow notching of blocks
Manual saw control, saw up, saw down, saw cut
Semi-automatic cut cycle
Miter cuts up to 45 by swiveling vise on most models. Some machines have mitering heads.
Heavy duty cast iron gear box designed for band sawing machines, with precision machined worm, phosphorous bronze worm gear, taper roller bearings and oil bath lubrication
All ball bearings are totally enclosed and lubricated for life
Blade guides are carbide faced with rollers to remove blade twist and dampen
Flood coolant system to both blades guides and an adjustable flow rate moveable nozzle.
Vibration flood coolant system to both saw guides
Adjustable material stop for repetitive cutting
Premium Bimetal blade
CSA/UL approved electrics. 208 V or 230 V or 460 V or 575 volts, 3 phase
The most popular size machines are partially finished and normally ship with 3 weeks.
No export shipping crate needed for USA, Canada or Mexico.
Need special features? We can customize these machines, but the lead time grows.
High Quality - designed and manufactured in Canada.

VERTICUT Double Column BandSaw
Model 360SA

$11,215. This machine has hydraulic head lift and a semi-automatic cut cycle. Machine uses a 1 inch (25mm) blade and has a 2 hp (1.5 kW) drive. Blade speed is set using a five-step pulley.
SPECIFICATIONS:
Round at 90 degrees: 14" (360mm)
Round at 45 degrees: 10-3/4" (273 mm)
Rectangular at 90°: 14" x 19" (360 x 480mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Table Height: 26-1/4" (670 mm)
Maximum Work Load: 3000 Lbs.(1350 kg)
Machine Weight: 1400 Lbs.(636 kg)
Blade Drive: 2 Hp (1.5 kW)
Hydraulic System: 1 Hp (.75 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Single Phase 220 Volt Electrics: $695 extra.
Hydraulic Vise: $1995 extra.
10 feet Roller Conveyor: $1695 extra.
Overseas Shipping Crate: $1000 extra.
Upgrade to 360SA-HD: More powerful 5 HP motor and wider 1-1/4" blade. Great for frequent cutting of structurals and pipe: $15,395 total price

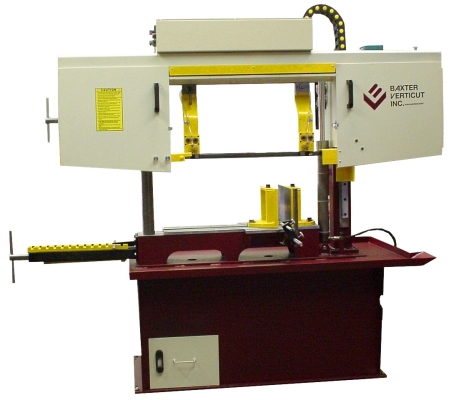

Double Column BandSaw machine - Baxter Verticut 360SA

Click to Request our discount Quote:
Verticut 360SA: cuts 19" wide x 14" high

VERTICUT Dual Column Band Saw
Model 360HFA

$28,495. This machine is a fully automatic bandsaw. Material is fed via a hydraulically driven shuttle vise mounted on linear bearings. Electronic variable speed drive, panel adjustable. The machine is equipped with an 1" (34mm) blade and driven by a 5 hp (3.75 kW) motor. Material shuttle stroke is 19" (480mm) with a four times multiplier. Fully-automatic cut cycle, consists of material advance, saw cut at end of cut the saw head will raise to top, repeat until parts counter decrements to 0. Parts counter to 9999.
MATERIAL FEED:
Stroke of shuttle vise is 19" (480mm)
with a length limit of 76" (1930mm)
Length of cut accuracy to +/-.015" (.4 mm)
Length of cut repeatability +/-.005" (.1 mm)
SPECIFICATIONS:
Round at 90 degrees: 13" (360mm)
Rectangular at 90°: 13" x 18" (360 x 460 mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Table Height: 26-1/4" (670 mm)
Maximum Work Load: 5600 Lbs.(2545 kg)
Machine Weight: 2600 Lbs.(1180 kg)
Blade Drive: 5 Hp (3.75 kW)
Hydraulic System: 2 Hp (1.5 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Variable Vise Pressure: $1195.
Bundle Clamping: $6995.
10 feet Roller Conveyor: $1695.
Overseas Shipping Crate: $1500.

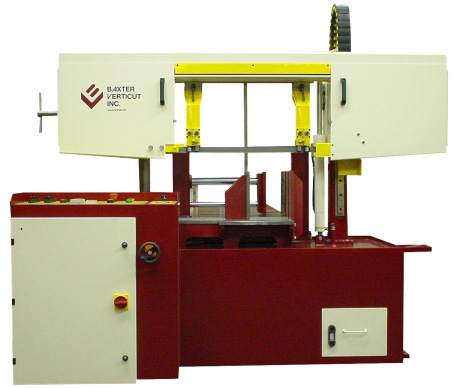

Double Column Band Saw - Baxter Verticut 360HFA

DOUBLE COLUMN BAND SAW
WITH AUTOMATIC FEED AND CUT

Click to Request our discount Quote:
Verticut 360HFA: cuts 18" wide x 13" high

VERTICUT Dual-Direction Miter BandSaw
Model 400M2

$18,995. Because the double column head can rotate, this machine is great for miter cutting. The head can rotate 45° forward and 60° back. The machine has an 1" (34mm) wide blade and is driven by a powerful 5 hp (3.75 kW) motor. Hydraulic Vice.
SPECIFICATIONS:
Round at 90 degrees: 16" (400 mm)
Rectangular at 45°: 15" (380 mm)
Rectangular at 60°: 10-1/2" (265 mm)
Rectangular at 90°: 21"W x 12-3/4"H (530x400 mm)
Rectangular at 45°: 15"W x 10-1/2"H (380x320 mm)
Square at 60°: 10-1/2" W x 10-1/2"H (365x365 mm)
Rectangular at 60°: 7-3/4"W x 16"H (195x400 mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Table Height: 30-1/2" (775 mm)
Maximum Work Load: 3000 Lbs.(1350 kg)
Machine Weight: 2150 Lbs.(980 kg)
Blade Drive: 5 Hp (3.75 kW)
Hydraulic System: 2 Hp (1.5 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Laser Light Cutting Line Indicator: $1095.
Work Light: $198.
10 feet Roller Conveyor: $1745.
Overseas Shipping Crate: $1400.

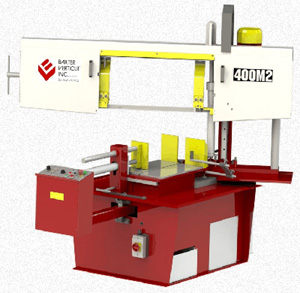

Double Column Bandsaw with Miter Cutting Head - Verticut 400M2

DOUBLE COLUMN BANDSAW
WITH MITER CUTTING HEAD

Click to Request our discount Quote:
Verticut 400M2: cuts 21" wide or 16" high

VERTICUT Double Column BandSaw
Model 475HD

$25,995. This machine is great for cutting solid parts. The machine has a large 1" (38mm) wide blade driven by a powerful 7.5 hp (5 kW) motor. A full stroke hydraulic vise is standard.
SPECIFICATIONS:
Round at 90 degrees: 18" (475mm)
Round at 45 degrees: 13-3/8" (340mm)
Rectangular at 90°: 18" x 25" (475 x 635mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Blade Guides: Carbide with rollers
Table Height: 26-1/4" (670 mm)
Maximum Work Load: 4500 Lbs.(2050 kg)
Machine Weight: 2800 Lbs.(1090 kg)
Blade Drive: 7.5 Hp (5 kW)
Hydraulic System: 1 Hp (.75 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Laser Light Cutting Line Indicator: $1095.
Variable Vice Pressure: $1195.
Hydraulic Vice: $2995.
10 feet Roller Conveyor: $2295.
Overseas Shipping Crate: $1500.

Double Column Band Saw - Baxter Verticut 360HDP

Click to Request our discount Quote:
Verticut 475HD: cuts 18" wide x 25" high

VERTICUT Fully Automatic Dual Column Band Saw Model 475HFA - Extra Wide!

$48,395. The 475HFA is a fully automatic bandsaw. This machine has a huge capacity that can cut solids and grating up to 18" (460mm) high x 36" (915mm) wide. Material is fed via a hydraulically driven shuttle vise mounted on linear bearings. Electronic variable speed drive, panel adjustable. The machine is equipped with an 1" (38mm) blade and driven by an extra powerful 10 hp (7.5 kW) motor. Fully-automatic cut cycle, consists of material advance, saw cut at end of cut the saw head will raise to top, repeat until parts counter decrements to 0. Parts counter to 9999. Discharge table included.
MATERIAL FEED:
Stroke of shuttle vise is 24" (610mm)
with a length limit of 96" (2440mm)
Length of cut accuracy to +/-.015" (.4 mm)
Length of cut repeatability +/-.005" (.1 mm)
SPECIFICATIONS:
Round at 90 degrees: 18" (460mm)
Rectangular at 90°: 18" x 36" (460 x 915mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Table Height: 26-1/4" (667 mm)
Maximum Work Load: 7000 Lbs.(3180 kg)
Machine Weight: 5200 Lbs.(2360 kg)
Blade Drive: 10 Hp (7.5 kW)
Hydraulic System: 3 Hp (2.25 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Discharge Vises, Horizontal and Vertical: $6995.
10 feet Roller Conveyor: $2795.
Overseas Shipping Crate: $2195.

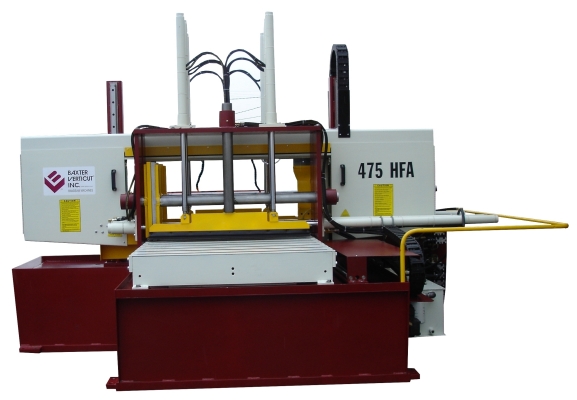

Automatic Band Saw Machine with double column accuracy - front view

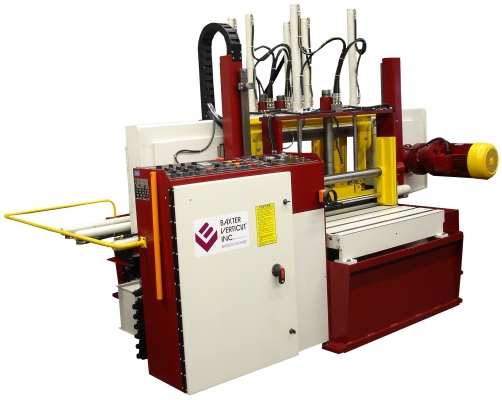

Automatic Band Saw Machine with double column accuracy - control view

36 inch DOUBLE COLUMN BAND SAW
WITH AUTOMATIC FEED AND CUT

Click to Request our discount Quote:
Verticut 475HFA: cuts 18" wide x 13" high

VERTICUT Double Column BandSaw
Model 600SA

$27,995. This machine has the blade canted at 4 degrees to aid in cutting structural steel and flats. The saw has a large 1" (38mm) wide blade driven by a powerful 7.5 hp (5 kW) motor.
SPECIFICATIONS:
Round at 90 degrees: 24" (610mm)
Rectangular at 90°: 22" x 28" (560 x 710mm)
Blade Speeds - variable: 60 to 360 feet/min
(18 to 110 m/min)
Table Height: 26-1/4" (665 mm)
Maximum Work Load: 6000 Lbs.(2700 kg)
Machine Weight: 4100 Lbs.(1860 kg)
Blade System: 7.5 Hp (5 kW)
Hydraulic System: 1 Hp (.75 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Laser Light Cutting Line Indicator: $1095 extra.
Variable Vice Pressure: $1195 extra.
Hydraulic Vice: $3495 extra.
10 feet Roller Conveyor: $2695 extra.
Overseas Shipping Crate: $2500 extra.
Upgrade to 600M2: Rotatable Mitering head, extra powerful 10 HP motor. Great for frequent angle cutting of structurals and pipe: $69,995 total price

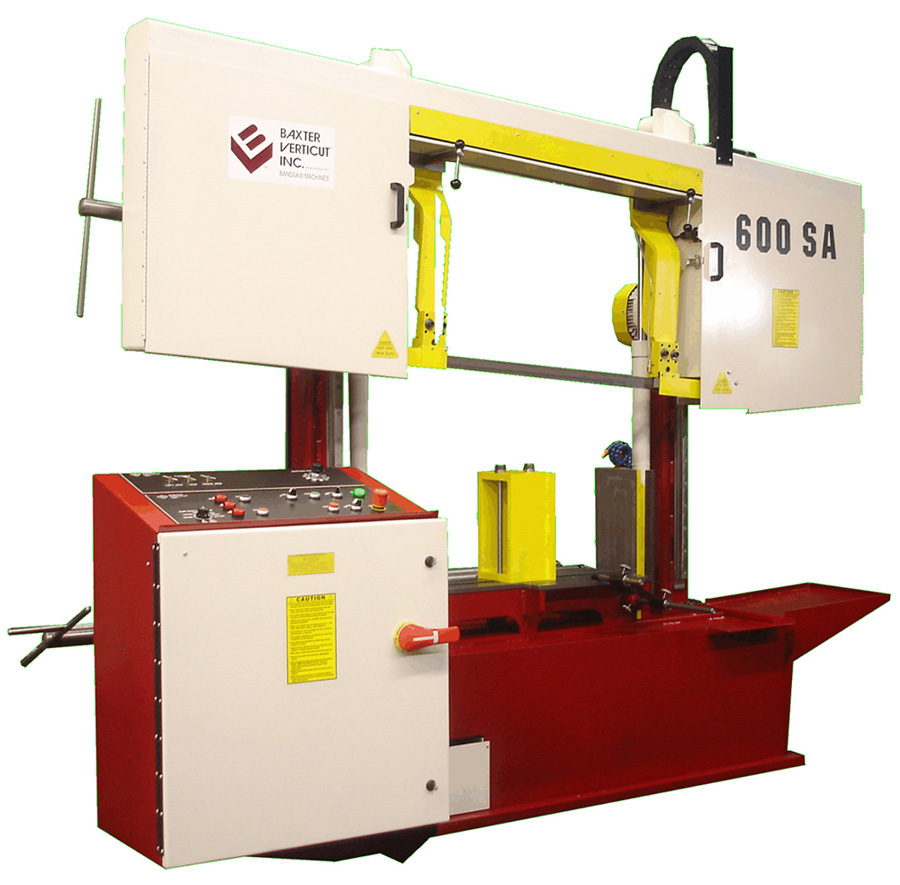

600SA Double Column Band Saw machine

Click to Request our discount Quote:
Verticut 600SA: cuts 28" wide x 24" high

VERTICUT Double Column Band Saw
Model 700SA

$37,995. Big capacity machine at a very good price! 27.5 inch capacity. Customization possible. This saw has a large 1" (38mm) wide blade driven by a powerful 10 hp (7.5 kW) motor. Split vise design clamps the material on both sides for a better cut.
SPECIFICATIONS:
Round at 90 degrees: 27-1/2" (700mm)
Rectangular at 90°: 27.5" x 27.5" (700 x 700mm)
Blade Speeds - variable: 60 to 400 feet/min
(18 to 122 m/min)
Table Height: 27" (686 mm)
Maximum Work Load: 6500 Lbs.(2700 kg)
Machine Weight: 7000 Lbs.(1860 kg)
Blade System: 10 Hp (7.5 kW)
Hydraulic Drive: 2 Hp (1.5 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Laser Light Cutting Line Indicator: $1095 extra.
Variable Vice Pressure: $1195 extra.
Hydraulic Full Stroke Vice: $3295 extra.
Bundle Clamping: $9995 extra.
Work Light: $198 extra.
10 feet Roller Conveyor: $2695 extra.
Overseas Shipping Crate: $3500 extra.
Switch to 700C: 4 degree canted blade to improve cutting of structurals. $37,995 total price.
Upgrade to 700C-HFA: fully automatic. Material is fed via a hydraulically driven shuttle vise mounted on linear bearings. Electronic variable speed drive, panel adjustable. Fully-automatic cut cycle, consists of material advance, saw cut at end of cut the saw head will raise to top, repeat until parts counter decrements to 0. Parts counter to 9999. Discharge table included. $79,995 total price.

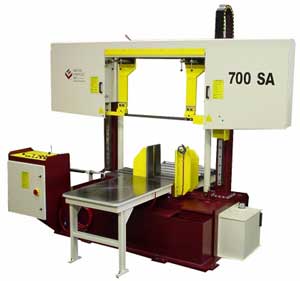

Photo of Verticut 700SA 2 Post Horizontal Band Saw

Click to Request our discount Quote:
Verticut 700SA: cuts 28" wide x 27.5" high

VERTICUT Double Column BandSaw
Model 800SA is huge!

$66,995. Verticut's largest band saw machine ever. You can cut solid shafts up to 32 inches diameter! It has a huge 2-5/8" (67mm) wide blade driven by a powerful 10 hp (7.5 kW) motor. The saw will cut almost anything!
SPECIFICATIONS:
Round at 90 degrees: 27-1/2" (700mm)
Rectangular at 90°: 27.5" x 27.5" (700 x 700mm)
Blade Speeds - variable: 60 to 340 feet/min
(18 to 102 m/min)
Table Height: 27" (686 mm)
Maximum Work Load: 7500 Lbs.(2950 kg)
Machine Weight: 8500 Lbs.(3850 kg)
Blade System: 10 Hp (7.5 kW)
Hydraulic Drive: 3 Hp (2.25 kW)
Voltages available 3 phase: 208, 230, 460 or 575 V
OPTIONS:
Variable Vice Pressure: $1195 extra.
Work Light: $198 extra.
Heavy 10 feet Roller Conveyor: $3995 extra.
Overseas Shipping Crate: $4000 extra.

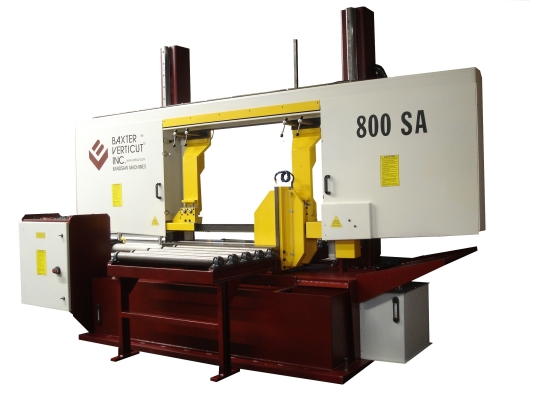

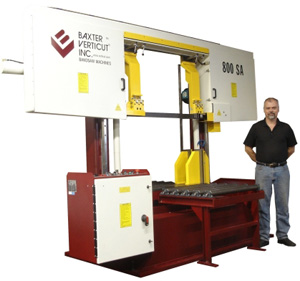

Double Column Bandsaw - Baxter Verticut 800SA

Click to Request our discount Quote:
Verticut 800SA: cuts 32" wide x 32" high

American made WF WELLS Dual Column Bandsaws (many sizes in stock)

WF Wells Double Column model W-9

MACHINE SPECIFICATIONS:
Capacity @ 90:
Rectangular 18" wide x 9" high, Round 9"
Piece Part Weight Capacity: 2000 Lbs.
Blade Speed Range: 70-380 SFPM
Blade size: 1" x 116"
Bandwheel Size: 14"
Sawing Force: 30 to 120 Lbs
Saw Frame to Raise: 16" in 18 Seconds
Cycle Time to Lower: 16" in 12 Seconds
Blade Drive Motor: 3 HP, 3 ph or 1 HP, 1 ph
Work Height: 26"
Coolant Capacity: 10 gallons
Machine Weight: 990 Lbs.
Machine Dimensions: 43" L x 81" W x 63" H
Click to Request a Quote for the W-9

OPTIONS AVAILABLE:
Casters
Automatic Length Stop Assembly
Discharge Table, 20"W x 48"L (with Length Stop)
Production Angle Vise (swivels 45)
Work Light, Wired In
Blade Tension Indicator
Manual Air Vise
Blade Break/Stall Switch
Air Holddown
Stock Stand, 6" or 12" Roller
Manual Holddown
Free Standing Roller Stock Conveyors

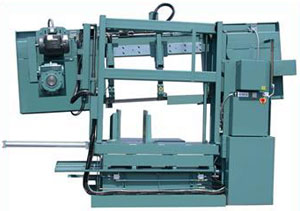

Double Column Band Saw WF Wells W-9-1 made in USA

STANDARD FEATURES:
* Made in USA by WF Wells
* Normally in stock
* Semi-Automatic
* 1" Bi-Metal, High Production Blade
* Carbide Blade Guides with Back-Up Rollers
* Manually Controlled Vise
* Manually Controlled Blade Tension
* 45 Swiveling Vise
* Built-in Coolant System
* Console Controlled Blade Speed
* Blade Powered Cleaning Brush
* Automatic End-of-Cut Shut Down
* Quick and Easy Blade Speed Change
* Blade Speed and Work Selector Chart
* Feed Pressure Monitor/Regulator
* TEFC Motor
* Low Voltage and Overload Protection
* Fused Disconnect
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil included

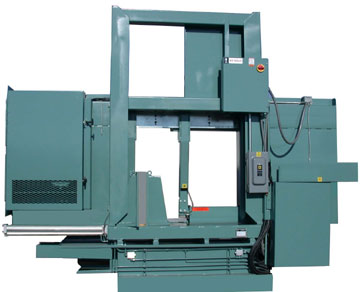

Dual Column Band Saw model W-10

MACHINE SPECIFICATIONS:
Capacity at 90: Rectangular 17" wide x 10" high
Round 10" Diameter
Piece Part Weight Capacity: 5000 Lbs
Blade Speed Range: 60-425 SFPM
Blade Size: 1" x 11'11"
Bandwheel Size: 14"
Sawing Force: 30-120 Lbs
Blade Drive: 5 HP, 3 phase
Hydraulic Drive: 1/3 HP
Work Height: 26"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 1400 Lbs
Click to Request a Quote for the W-10

OPTIONS AVAILABLE:
Hydraulic Vise & Blade Tension (option W10-2).
Casters
Automatic Length Stop Assembly
Discharge Worktable, 20"W x 48"L with Stock Stop
Miter Vise, 45
Manual Air Vise
Work Light, Wired In
Blade Break/Stall Switch
Stock Stand, 6" OR 12" Wide (Heavy Duty)
High Speed AC Drive (400-3000 SFPM)
Console Controlled Blade Speed (AC Drive)
Free Standing Roller Stock Conveyors

Dual Column BandSaw WF Wells W10-1

STANDARD FEATURES:
* Made in USA by WF Wells
* Normally in stock
* Semi-Automatic
* 1" Bi-Metal Blade
* Carbide Guide Blocks
* Manual Vise Operation
* Manually Controlled Blade Tension
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect
* Low Voltage Protection
* Overload Protection
* Automatic End-Of-Cut Shut-Off
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

2 Post BandSaw model F-16

MACHINE SPECIFICATIONS:
Capacity at 90: Rectangular 20" wide x 16" high
Round 16" Diameter
Capacity @ 45: Rectangular 9" wide x 16" high
Round 10" Diameter
Piece Part Weight Capacity: 5000 Lbs
Blade Speed Range: 60-425 SFPM
Blade Size: 1" X .042" X 15'
Bandwheel Size: 14"
Sawing Force: 30-120 Lbs
Blade Drive: 5 HP, 3 phase
Hydraulic Drive: 1/3 HP
Work Height: 26"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 2100 Lbs
Machine Size: 49" L x 97" W x 83" H
Click to Request a Quote for the F-16

OPTIONS AVAILABLE:
Hydraulic Vise & Blade Tension (option F16-2).
Hydraulic Vise & Blade Tension + 10 HP Invertor Drive + 1" Blade (option F16-3).
Casters
Automatic Length Stop Assembly
Discharge Worktable, 20"W x 48"L with Stock Stop
Mitering Vise, 45
Manual Air Vise
Work Light, Wired In
Blade Break/Stall Switch
Stock Stand, 6" OR 12" Wide (Heavy Duty)
High Speed AC Drive (400-3000 SFPM)
Console Controlled Blade Speed (AC Drive)
Free Standing Roller Stock Conveyors

Twin Post BandSaw WF Wells W16-1

STANDARD FEATURES:
* Made in USA by WF Wells
* Normally in stock
* Semi-Automatic
* 1" Bi-Metal Blade
* Carbide Guides with Roller Backups
* Manual Vise Operation
* Manually Controlled Blade Tension
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect with Lock Out
* Low Voltage Protection
* Overload Protection
* Automatic End-Of-Cut Shut-Off
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

Double Column Band Saw model F-1630

MACHINE SPECIFICATIONS:
Capacity at 90: Rectangular 30" wide x 16" high
Round 16" Diameter
Piece Part Weight Capacity: 5000 Lbs
Blade Speed Range: 60-425 SFPM
Blade Size: 1" X .042" X 16'8"
Bandwheel Size: 20"
Sawing Force: 30-120 Lbs
Blade Drive: 7.5 HP, 3 phase
Hydraulic Drive: 1/3 HP
Work Height: 26"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 2500 Lbs
Machine Size: 118" L x 52" W x 88" H
Click to Request a Quote for the F-1630

OPTIONAL ACCESSORIES:
Hydraulic Swivel Vise (45) with Variable Pressure with 2 HP hydraulic pump (option F1630-2).
Automatic Length Stop Assembly
Discharge Worktable, 20" W x 48" L with Stock Stop
Production Angle Vise, 45 swivel
Work Light, Wired In
Air Vise Manual Air Holddown
Blade Break/Stall Switch
Chip Conveyor, Electric
Hydraulic Clamping Mitering Vise with Swivel Base
21" x 10' Powered Conveyor, Electric
High Speed AC Drive (1" Blade) 400-3000 SFPM
Console Controlled Blade Speed (AC Drive)
Free Standing Roller Stock Conveyors

2 Post Band Saw machine model F1630-1 made in USA by WF Wells

STANDARD FEATURES:
* Made in USA by WF Wells
* Semi-Automatic
* 1" Bi-Metal Blade
* Carbide Guides with Roller Backups
* Manual Vise swivels 45
* Manually Controlled Blade Tension
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect with Lock Out
* Automatic End-Of-Cut Shut-Off
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

2 Post BandSaw model H-2024

Capacity at 90: Rectangular 24" wide x 20" high
Round 20" Diameter
Capacity @ 45: Rectangular 13" wide x 20" high
Round 13" Diameter
Vise: Manual, 15" capacity
Piece Part Weight Capacity: 5000 Lbs
Blade Speed Range: 60-500 SFPM
Blade Size: 1" X .042" X 17'8"
Bandwheel Size: 20"
Sawing Force: 30-120 Lbs
Blade Drive: 7.5 HP, 3 phase
Hydraulic Drive: 1/3 HP (2 HP optional)
Work Height: 26"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 2800 Lbs
Machine Size: 99" L x 36" W x 84" H
Click to Request a Quote for the H-2024

OPTIONS AVAILABLE:
* 2 HP Hyraulic Drive with Hydraulic Vise & Blade Tension + 10 HP Invertor Drive + 1" Blade with 750 Lbs sawing force (option H2024-3).
* Automatic Length Stop Assembly
* Discharge Worktable, 20"W x 48"L with Stock Stop
* Manual Air Vise
* Work Light, Wired In
* Blade Break/Stall Switch
* Stock Stand, 6" OR 12" Wide (Heavy Duty)
* High Speed AC Drive (400-3000 SFPM)
* Console Controlled Blade Speed (AC Drive)
* Free Standing Roller Stock Conveyor
* Casters

Double Column BandSaw machine model H-2024-1 made in USA by WF Wells

STANDARD FEATURES:
* Made in USA by WF Wells
* Semi-Automatic
* 1" Bi-Metal Blade
* Carbide Guides with Roller Backups
* Manual Vise swivels 45
* Manually Controlled Blade Tension
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect with Lock Out
* Automatic out of stock shutdown
* Quick & Easy Blade Speed Change
* Feed Pressure Monitor/Regulator
* Electrical to NFPA-79 Standards
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

Twin Post Band Saw model B-25

Capacity at 90: Rectangular 40" wide x 25" high
Round 25" Diameter
Capacity @ 45: Rectangular 24" wide x 25" high
Round 24" Diameter
Vise: Manual, 15" capacity
Piece Part Weight Capacity: 15000 Lbs
Blade Speed Range: 60-500 SFPM
Blade Size: 1 X .042" X 22' 6"
Bandwheel Size: 26"
Sawing Force: 0 to 750 Lbs
Blade Drive: 7.5 HP, 3 phase, AC Vector Drive
Hydraulic System: 2 HP
Work Height: 28"
Outfeed Table: 24" x 40"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 20 gallons
Machine Weight: 5800 Lbs

Dual Column Band Saw machine model B-25-1 front view made in USA by WF Wells
WF Wells B25-1 base model

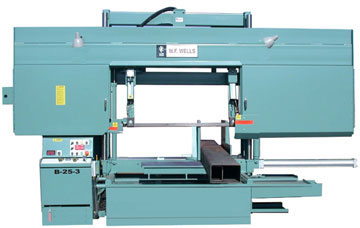

Dual Column Band Saw B-25-3 with hydraulic controls by WF Wells
WF Wells B25-3 with hydraulic controls

STANDARD FEATURES:
* Made in USA by WF Wells
* Semi-Automatic
* 1" Bi-Metal Blade
* AC Vector Drive
* Carbide Guides with Roller Backups
* Hydraulically controlled Vise
* Hydraulically controlled Blade Tension
* Vise swivels 45
* Blade Tension Indicator
* Built-In Coolant System
* Blade Powered, Rotary Cleaning Brush
* TEFC Motors
* Fused Disconnect with Lock Out
* Automatic out of stock shutdown
* Console Controlled Blade Speed
* Feed Pressure Monitor/Regulator
* Low Voltage/Overload Protection
* Electronic Door Safety Interlocks
* Work Lights
* Safety Guards, Owners Manual
* Hydraulic oil and gear oil included

Click to Request a Quote for the B-25

OPTIONS AVAILABLE:
* 1" Bi-Metal Blade (option B25-2)
* 1" Bi-Metal Blade + 6 Cant (option B25-2C)
* 2" Bi-Metal Blade + Hydraulic Positioned Guide Arm (option B25-3)
* 2" Bi-Metal Blade + 6 Cant + Hydraulic Positioned Guide Arm (option B25-3C).
* 2-5/8" Bi-Metal Blade + Hydraulic Auger Style Chip Conveyor + Hydraulic Powered Blade Brush + Hydraulic Positioned Guide Arm + LED Positive Feed Readout (option B25-4)
* Large Discharge Worktable, 40" W x 56" L with Stock Stop
* Hydraulic Chip Conveyor
* Blade Break/Stall Switch
* Non-Powered Conveyor
* Hydraulic Powered Conveyor
* High Speed Drive & Guides 500-3000 SFPM

Rear view of B25-3C with hydraulic controls and 6 degree Cant
Rear View of B25-3C with hydraulics and 6 Cant

Double Column BandSaw model S-40

Capacity at 90: Rectangular 40" wide x 40" high
Round 40" Diameter (1 meter)
Capacity @ 45: Rectangular 24" wide x 40" high
Round 24" Diameter
Piece Part Weight Capacity: 15000 Lbs
Blade Speed Range: 115-500 SFPM
Blade Size: 2" x .063" x 29'
Bandwheel Size: 42"
Sawing Force: 0-500 Lbs
Vise: Hydraulic, 24" capacity
Blade Drive: 15 HP, 3 phase AC Vector Drive
Hydraulic Drive: 5 HP
Work Height: 28"
Coolant Capacity: 15 gallons
Hydraulic Capacity: 3/4 gallon
Machine Weight: 9200 Lbs

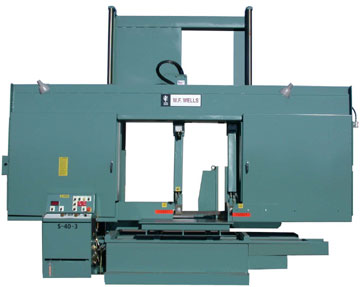

Twin Post BandSaw machine model S-40-3 front view made in USA by WF Wells
WF Wells S-40-3 front view
Twin Post BandSaw machine model S-40-3 rear view made in USA by WF Wells
WF Wells S-40-3 rear view

STANDARD FEATURES:
* Made in USA by WF Wells
* Semi-Automatic
* 2" Bi-Metal Blade
* AC Vector Drive
* Spring Loaded Carbide Guides
* Hydraulic Vise w/ Variable Pressure
* Hydraulic Blade Tension
* Hydraulic Guide Arm Positioning
* Blade Tension Indicator
* Blade Break/Stall Switch
* Built-In Coolant System
* Hydraulic Powered Blade Brush
* TEFC Motors
* Fused Disconnect
* Automatic End-Of-Cut Shut off
* Console Controlled Blade Speed
* Feed Pressure Monitor/Regulator
* Low Voltage/Overload Protection
* Electronic Door Safety Interlocks
* Work Lights
* Safety Guards, Owners Manual

Click to Request a Quote for the S-40

OPTIONS AVAILABLE:
* 2" Bi-Metal Blade at 6 Cant + 24" x 40" Outfeed Table (option S40-3C)
* 2-5/8" Bi-Metal Blade with 1000 Lbs saw force (option S40-4)
* Discharge Worktable, 40" W x 56" L
* Hydraulic Chip Conveyor, Auger Style
* Hydraulic Holddown, Saw Vise
* Outboard Vise with Hydraulic Holddown
* Outboard Vise
* High Speed Drive & Guides (1" Blade) 570-3400 SFPM
* Hydraulic Powered Conveyor, 36" x 10'
* Non-Powered Conveyor 36" x 5'
* Non-Powered Conveyor 36" x 10'
* 40" wide Conveyors

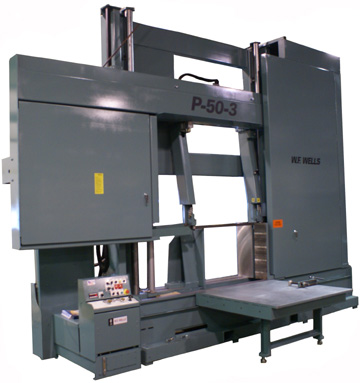

2 Post Band Saw model P-50

2 Post Horizontal Band Saw Machine. American made by WF Wells.

STANDARD SPECIFICATIONS:
Made in USA by WF Wells
Capacity Rectangular @ 90: 50" H x 50" W
Weight Capacity: 15,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 2" x .063" x 37'-8"
Blade Guide Carbide Blocks, Spring Tensioned
Blade Tension Hydraulic, Console Controlled
Sawing Force Variable: 0-1000 Lbs
Vise: Hydraulic Full Stroke
Hydraulic System: 20 Gallon Capacity, 5 HP Motor
Coolant System: 60 Gallon Capacity, 10 GPM Pump
Work Height: 26"
Shipping Weight: 21,500 lbs
Electrics: Wired to NFPA 79 Machine Tool Standards
Machine Dimensions: 24' L x 60" W x 13'6" H
LED Blade Speed Indicator
Hydraulic Guide Arm Positioning
Blade Break/Stall Switch
Hydraulic Powered Blade Brush

Click to Request a Quote for the S-50

OPTIONAL ACCESSORIES:
* Discharge Worktable, 50" W x 48" L
* Discharge Worktable, 50" W x 96" L
* Hydraulic Holddown, Saw Vise
* High Speed Drive, Roller Guides
* Hydraulic Chip Conveyor
* Option S50-4 comes with 2-5/8" Bi-Metal Blade + LED Positive Feed Readout + Chip Conveyor and also comes with Positive Frame Feed, which allows the head to descend at a fixed rate (inches per minute) for optimum cutting of those high production applications where similar types of material are cut repetitively. Hydraulic down pressure moves the blade through tough materials at a constant rate.

Baileigh imported Double Column Band Saw Machines

Baileigh BS-360SA Dual Column Band Saw

Need an accurate horizontal bandsaw to call a lot of steel? The BS-360SA semi-automatic band saw is heavy duty and has a big 14 x 22 rectangle cutting capacity. The dual column design keeps the blade tracking straight. Built with high quality components, the BS-360SA has a full cast iron vise and bow that are machined to tight tolerances to ensure that the cuts are exact. The blade guides are fully sealed ball bearings to ensure proper tracking of the blade.

Powered by a 5 Hp motor that drives the blade and hydraulic system. Using this saw is easy to use because of a well labeled control panel allowing the operator to understand it quickly. The semi-automatic system has controls to open and close the vise and to hydraulically raise and lower the saw head. Other nice features are a hydraulic blade tension control with a blade brake switch, a flood coolant system, work light, and a chip removal blade brush. Made in Taiwan.

Click to Request a Quote for the BS-360SA

Baileight 360SA Dual Column BandSaw Machine

Capacity Round: 14"
Capacity Square: 14"
Capacity Rectangle: 14" x 22"
Return: Hydraulic
Table Height: 29.21"
Blade Speed: 66 279 fpm variable
Blade Guide: Hydraulic
Blade Size: 1.3" wide x .04" thick x 192.13" long
Descent Control: Pressure Assist Hydraulic
Motor: 5 HP

Drive: Inverter variable speed
Power: 220 Volts, 3 phase
Shipping Weight: 3,100 lbs.

Baileigh BS-700SA Double Column Bandsaw

Baileigh BS-700SA Double Column Horizontal BandSaw machine

The BS-700SA dual column type bandsaw is designed for cutting large stock all day long. It has 27.5 inch diameter round cutting capacity. The double column design keeps the blade tracking straight. This machine comes with many features including a unique hydraulic carbide guide system, a powered chip brush for longer blade life, and an automatic chip removal device as well. A variable speed inverter drive is also standard. Since feeding large stock can be difficult, the Baileigh bandsaw also includes a 80 inch long roller table that has a rack and pinion conveyor to help move heavy stock material. Made in Taiwan.

Specifications:
Capacity Round: 27.5"
Capacity Square: 27.5"
Return: Hydraulic
Motor: 10 HP
Table Height: 26.75"
Blade Guide: Hydraulic
Carbide Blade Size: 2.125" wide x .063" thick x 283.465" Long
Drive: Inverter variable speed
Power: 220 Volts, 3 phase
Shipping Weight: 9,000 lbs.

Click to Request a Quote BS-700SA

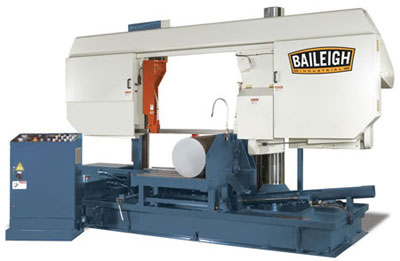

Baileigh BS-800SA Dual Column BandSaw

Baileigh BS-800SA Dual Column Band Saw machine

The BS-800SA is a semi-automatic band saw that features a unique hydraulic carbide guide system, a powered chip brush for longer blade life, and an automatic chip removal device as well. An inverter driven variable speed system is standard. The 31.5 round cutting capacity gives this machine the ability to cut large stock all day long without quitting. Feeding the material into the saw is easy with the 80" long roller table that is a standard feature on the BS-800SA. The dual column design keeps the blade tracking straight which is important for cutting large pieces. Made in Taiwan.

Specifications:
Capacity Round: 31.5"
Capacity Square: 31"
Return: Hydraulic
Motor: 10 HP
Blade Guide: Hydraulic
Blade Size:
2.125" wide x .063" thick x 326.77" Long
Drive: Inverter variable speed
Power: 220 Volts, 3 phase
Shipping Weight: 9,500 Lbs.

Click to Request a Quote BS-800SA

Click for our Metal Band Saw webpage

Click for the American Machine Tool Homepage

American Machine Tools Corp.
5866 Northwest Hwy
Chicago IL 60631 USA

Phone: 773-334-5000
Fax: 773-442-0314

Click to email us

Terms and Conditions

Privacy Clause

Frequently Asked Questions
Website by eMarketAmerica
Copyright 2001 - 2018
American Machine Tools Corp.

All rights reserved
Information on this website is subject to change without notice.
Offers from American Machine Tools Corporation include include Terms and Conditions shown on our website.
Liability is strictly limited to those warranties of fitness for purpose and safety as provided by the manufacturer.
Products and Logos in this website are trademarks or registered trademarks of their respective companies or mark holders.
