Belt-Disc Sander
Wilton Industrial Belt and Disc Sanders and Chamfering-Beveling machines.  CLICK FOR HOMEPAGE.

Wilton Belt Sander, Disc Sanders and Chamfering Machines.
Also timesaver type FinishPro deburring & finishing machines.

American Machine Tools Company is accedited by the Better Business Bureau! Click to verify. We accept Visa credit cards for up to $25,000.We accept Mastercard for up to $25,000.American Express accepted here for up to $25,000.

Jet-Wilton model 4300 Series
6 inch INDUSTRIAL BELT SANDING MACHINE

• Table tilts 45° out, and 20° in
• Adjustable dust deflector & chute
• Fine adjustment belt tracking
• Miter gauge
• Variable-position locks; vertical, horizontal or in between
• 1.5 HP motor. Choose 1 of 3 voltages; 110V, 220V or 440V.
• Belt Size: 6" x 48"
• Belt Speed: 2850 fpm
• Weight: 215 Lbs
• Overall size: 26" x 19" x 58" H

Click to Request this Quote and info packet

Photo of Wilton 4300 Industrial Belt Sanding machine

Jet-Wilton model 4210 Series
6" BELT & DISC FINISHING MACHINE

• Tables tilt 45° out
• Fine adjustment belt tracking
• Miter gauge
• Variable-position locks; vertical, horizontal or in between
• 1 HP motor, 110 volts, 1 phase
• Belt Size: 6" x 48"
• Belt Speed: 1650 fpm
• 10" Disc Speed: 2100 rpm
• Weight: 170 Lbs
• Overall size: 26" x 19" x 58" H

Click to Request this Quote and info packet

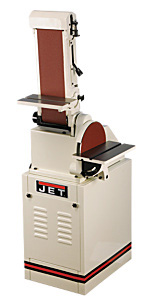

Picture of Wilton 4210 Industrial Belt and Disc Sanding machine

Jet-Wilton model 4200 Series - Heavy duty
6 inch INDUSTRIAL BELT & DISC FINISHING MACHINE

• Tables tilt 45° out, and 20° in
• Adjustable dust deflector & chute
• Fine adjustment belt tracking
• Miter gauge
• Variable-position locks; vertical, horizontal or in between
• 1.5 HP motor. Choose 1 of 3 voltages; 110V, 220V or 440V.
• Belt Size: 6" x 48"
• Belt Speed: 2850 fpm
• 12" Disc Speed: 1960 rpm
• Weight: 250 Lbs
• Overall size: 26" x 19" x 58" H

Click to Request this Quote and info packet

Photo of Wilton 4200 Heavy Duty Disc and Belt Sanding machine

Jet-Wilton model 4500 Series
INDUSTRIAL 6" BELT SANDING and EDGE MILLING MACHINE

• Belt Sander same as above
Chamfering, beveling, deburring
• Edge mill angles from 15° to 45° ? 3" milling cutter head with 8 replaceable inserts
• Min. length of workpiece: 3.5"
• Max. cut at 45 degrees: 1/4"
• Max. cut at 15 degrees: 3/16"
• Bevel angle: 15-45 degrees
• 1.5 HP motor. Choose 1 of 3 voltages; 110V, 220V or 440V.
• Weight: 225 Lbs
• Overall size: 26" x 19" x 58" H

Click to Request this Quote and info packet

Picture of Wilton 4500 Industrial Belt Sanding and Edge Chamfering-Beveling machine

Jet-Wilton model 4400 Series
12 inch INDUSTRIAL DISC SANDING MACHINE

• Optimum speed of 1960 rpm for metal and wood
• Compound miter gauge
• Table tilt degree scale
• Disc Size: 12"
• Table tilts 45° out, and 20° in
• Table Size: 12 x 16-3/8
• 1.5 HP motor. Choose 1 of 3 voltages; 110V, 220V or 440V.
• Weight: 175 Lbs
• Overall size: 16" x 19" x 43"H

Click to Request this Quote and info packet

Photo of Wilton 4400 Industrial 12 inch Disc Sanding machine

Jet-Wilton model 4420 Series - Heavy Duty
20 inch INDUSTRIAL DISC FINISHING MACHINE

• 1725 rpm for metal, wood, fiberglass and plastic
• Compound miter gauge
• Table tilt degree scale
• Disc Size: 20"
• Table tilts 45° out, and 15° in
• Table Size: 27-1/2 x 10-1/2
• 3 HP motor
• Voltages: 220V or 440V, 3 phase
• Weight: 397 Lbs
• Overall size: 30" x 27.5" x 53"H

Click to Request this Quote and info packet

Photo of Wilton 4420 Heavy Duty 20 inch Disc Sanding machine
FINISH PRO time saver type machines
GRAINING-DeBURRING-FINISHING.
Available in WET or DRY versions.

Finish Pro Metal DeBurring-Graining-Finishing Machine
Options:

• Wet Process instead of Dry
• Wet Dust Collector
• Heavy Duty Ducting
• Inverter Drive -CC
Features:
• Motorized Table Lift, with digital readout
• Variable Speed Conveyor
• Conveyor Forward & Reverse
• Belt Safety Overtravel Switches
• Electronic Eye Belt Tracking. Belt tracking adjusting lever (Belt Trimmer) to re-adjust the tracking system when running extremely out of parallel belts
• 4-Jackscrew Table Support
• Double Infeed & Outfeed Pinch Rolls with protective guards
• Conveyor Belt Tracking System
• Safety System with Disc Brake. Air operated disc brakes to stop sanding head in 3-5 seconds in the even of loss of air pressure or activation of any emergency stop device
• Table Height Digital Readout
• Load Meter indicates percentage of full motor loads
• Belt change door electrically interlocked for safety purpose
• Air tensioning of belt for accurate tensioning & compensation of belt stretch
• Quick release sanding head support for fast belt change
• Dust collection hood with 4” outlet is located adjacent to abrasive head in sanding area
• Emergency stops from almost any point
• Noise below 80 dba
CAUTION: Hazardous materials, such as aluminum, titanium, magnesium, etc., should be processed with a dust collection system that conforms to National Fire Protection Association
MODEL:
FP-1460
FP-2560
FP-4075
FP-5285
Specifications
Max. Part Width
12-1/2"
24"
40"
52"
Abrasive Belt Size
14 x 60"
25" x 60"
40.5 x 75"
52 x 85"
Contact Roller Size
8" Diameter
8" Dia.
8" Dia.
8" Dia.
Passline Height
34 – 37"
34 – 37"
34 – 37"
34 – 37"
Max. Thickness Capacity
3-1/8”
3-1/8”
3-1/8"
3-1/8”
Conveyor Drive Speed
6 - 30 FPM
8-40 FPM
8-40 FPM
8-40 FPM
Infeed Conveyor Length
20"
20"
20"
20"
Optional Dust Collector Capacity
1000 CFM
1100 CFM
1800 CFM
2800 CFM
Main Motor
7.5 HP
10 HP
15 HP
30 HP
Conveyor Motor
1 HP
1 HP
1.5 HP
3 HP
Table Lift Motor
1/4 HP
1 HP
1 HP
3 HP
Electrical Requirement
35Amp@230/3/60
45Amp@230/3/60
60Amp@230/3/60
120Amp@230/3/60
Compress Air needed
2 CFM @ 90 PSI
2 CFM @ 90 PSI
2 CFM @ 90 PSI
2 CFM @ 90 PSI
Machine Weight
1,850 LBS
2,950 Lbs
4,650 Lbs
6,650 Lbs
Machine Size LxWxH
49 x 35 x 69"
55 x 63 x 69”
76 x 88 x 81"
89 x 98 x 93"
